Titanium: The powerful new element
in ESD floors for static control1
ElectraFloor
Titanium
Elegant yet Powerful.
Titanium like wear resistance,
Outstanding electrical
properties,
In
stock, ready to ship!
While most esd flooring materials rely on mere
conductive adhesives or a sprayed on grid work of carbon to
maximize conductivity, Titanium features a full surface
electrically conductive backing bonded to a hardened top
surface wear layer to provide the
ultimate in conductivity, wear resistance
and resiliency. Titanium is provided in an eye pleasing
medium gloss for reduced glare, with a unique micro finishing
technique that provides THE most slip resistant, easiest to
clean, lowest maintenance vinyl on the market. Ti's FULLY clean room compliant and
highly
chemical resistant. Titanium's perfect for a multitude
of applications including electronic assembly, munitions and
pharmaceutical manufacturing. It's a pure vinyl, devoid of
cheap clay fillers, making it resilient and flexible (not brittle like
most esd flooring). Hence, Titanium
can be flash coved up
walls and handles heavy loading without breaking. Utilizing
our approved specialty conductive adhesives allows
installation simply unheard in the past. When used in
conjunction with our unique
no residue VOC Free
textile
reinforced double sided adhesive, or our new United 2450
liquid conductive adhesive (voc
free and CA proposition 65 compliant) Titanium can be
installed over existing epoxy, VCT, limited porosity
concrete, painted surfaces, concrete and more. Your needs dictate: permanently
bonded OR installed in a mode that
allows removal and redeployment of the material in a
different area! Titanium,
the ultimate choice for clean rooms, electronic and
sophisticated product development, manufacturing, command
centers and more. With specifications that meet or
exceed the latest most stringent standards including the new
ANSI EOS ESD S 2020 2007,
Titanium T2
Tames
the Static Beast before it can take another byte!
|

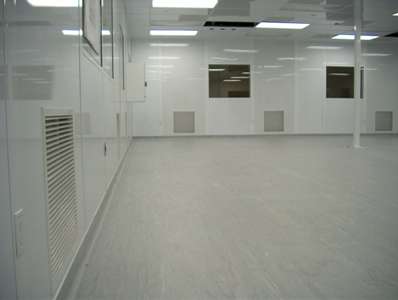

Titanium esd flooring installed in clean room.
Flash coved up walls and heat welded for
cleanliness.
|
|
Why Sheet goods?
Titanium Series esd flooring is available in sheet goods (or optional tiles) for a
very good reason. Let's look at a 150' x 60' area. A
typical 1' x 1' ESD tile will have over 18,000 linear feet
(nearly 4 MILES of seams)! Take a look at this
3M esd TILE floor. Bad
tiles? Poor install? Not at all. Unfortunately tiles don't
always fit perfectly and the installer must adjust (leave
small spaces between the tiles) as the installation
progresses (some tiles even shrink over a period of time).
And / or the substrate isn't flat leaving an uneven profile
(slight highs and lows) to the finished install.
Minute spaces between the tiles and / or deviations in
the flatness, a perfect environment for
contaminant and dirt entrapment. On a standard tile
floor these deviations typically present little problem,
they are often filled in with floor wax. Esd floor finish
shouldn't be a necessity for a quality esd floor. It
raises the insulative properties, can wreak havoc in a clean
room (from powdering), is expensive and can be a maintenance
application nightmare!
|

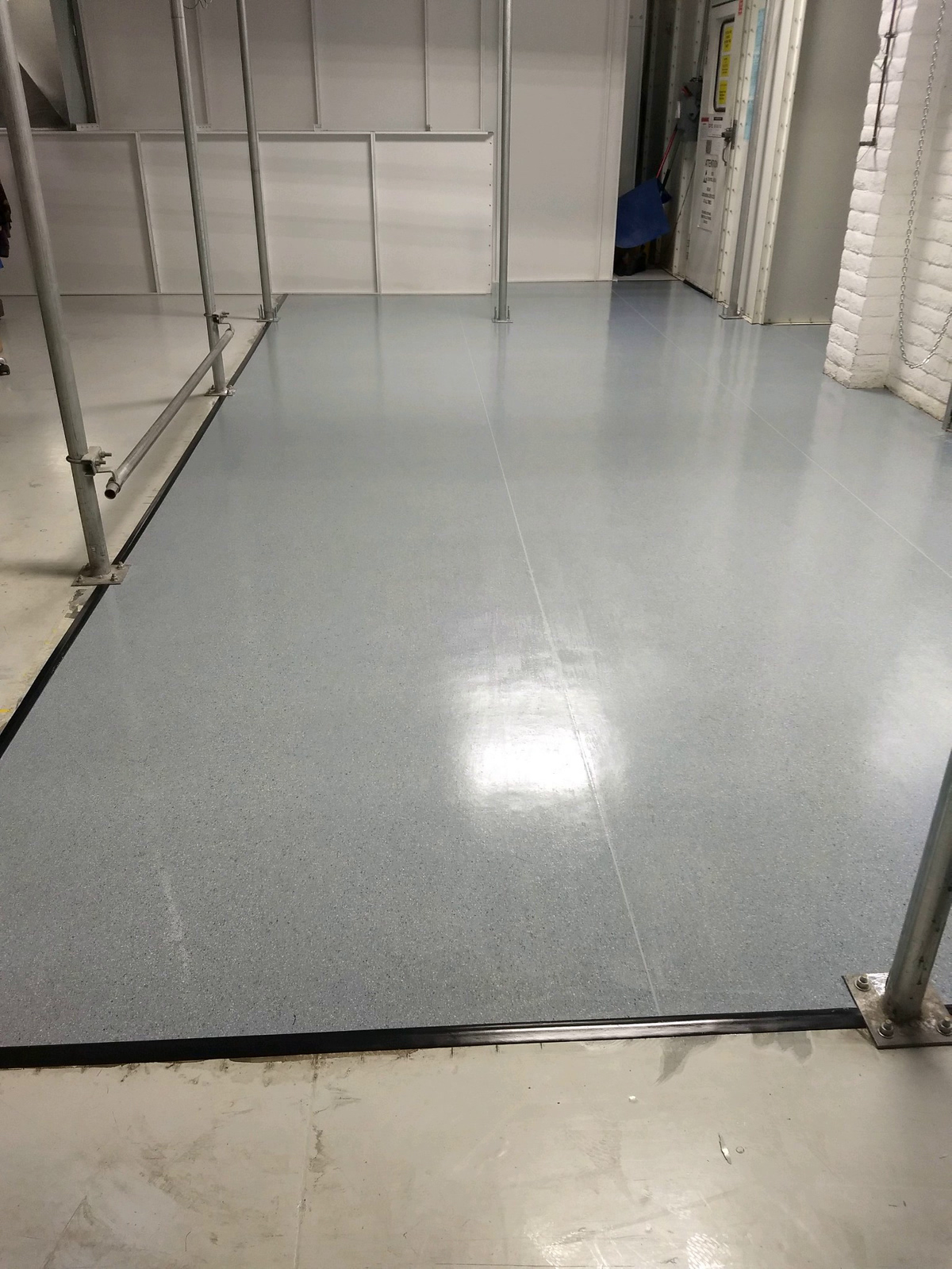

Titanium sheet goods, same area? less than 2,000
linear feet of seams and THESE seams are heat
welded for the ultimate in cleanliness and ease
of maintenance.
Click to Expand |
Click samples below
for 10 x magnification
|

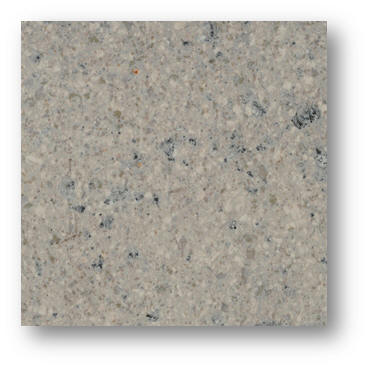

Pale Gray
PN: Ti481 |

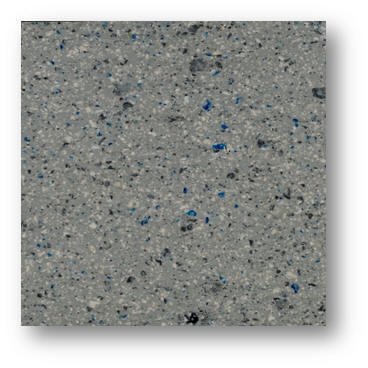

Dark Gray
PN: Ti482 |

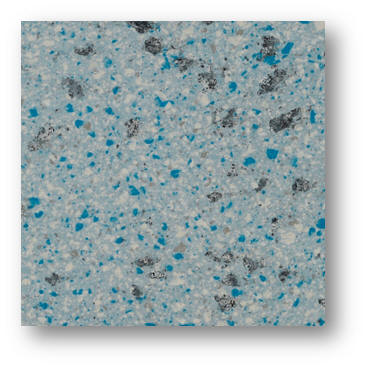

Electronic Blue
PN: Ti483 |

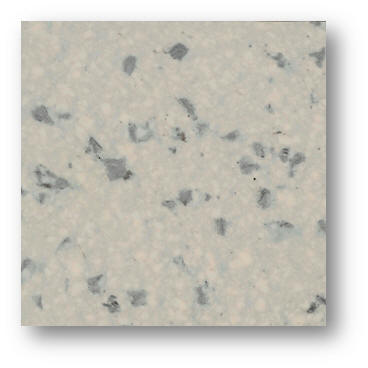

Clean White
PN: Ti480 |
Specifier Sheet
Short Form
Performance Specifications:
ElectraFloor Titanium Series semi gloss permanently esd
conductive solid vinyl industrial flooring product.
Roll goods may be used as mats or flooring. Titanium
Series ESD Flooring is manufactured in the European
Union for United SCP Incorporated, PO Box 19252,
Colorado City CO 81019. The material shall be
manufactured as a co- extruded 4' 6" x 66' x .080 gauge
sheet or 24" x 24" x .080 gauge tile with a hard wear
resistant esd conductive top layer and a flexible full
surface esd conductive supporting layer in a semi gloss
finish.
|
Surface Resistivity Point to
Point (PTP per EOS ESD S 7.1) |
>1.0E04 <1.0E06 (esd conductive) |
|
Electrical Resistance to Ground
(RTG per EOS ESD S 7.1) |
>1.0E04 <1.0E06 (esd conductive) |
|
Electrical Resistance
of technician in heel grounders in conjunction
with material to ground
(per ESD 97.1) |
<
3.5E07 |
|
Tribo
charging characteristics (per ESD 97.2) |
< 100
Volts |
|
Flooring Radiant Panel:
NFPA 253: Critical Radiant Flux |
0.73 W/cm2, Class 1 |
|
Flooring
Radiant Panel: NBSIR 75-950: Critical Radiant
Flux |
Pass,
Class 1 |
|
Flooring Radiant Panel:
ASTM-648: Critical Radiant Flux |
0.73 W/cm2, Class 1 |
|
Smoke Density,
ASTM E-662; NFPA
258; Average optical density in burning /
smoldering mode |
<450 |
|
Residual Indentation LF-475A |
0.002 average |
|
Abrasive Wear, Taber H-18 wheel,
5,000 cycles, 1,000 gm weight |
1.1% loss of weight |
|
Abrasive Wear, Taber H-18 wheel,
1,000 gm weight to wear layer penetration (end
point) |
>20,000 cycles,
<2.0% loss of weight |
|
Static coefficient of friction,
ASTM D-2047-03, James Test average wet, dry
leather |
.60 approx. |
|
Static load limit DIN 16961.2 |
>1,000
PSI |
|
Charge decay time per FTMS
4046-101c |
< .17 seconds |
Availability
Rolls: 4'6" x 66' x .080" gauge (297 SF per
roll)
(1.4m x 20m x 2.0mm gauge)
Tiles: 24" x 24" x .080" gauge
(608 x 608mm x 2.0 mm gauge)
Weight
Rolls: 297 sft./roll = 185 lbs./roll (84 Kg/box)
Tiles: 15 tiles/box (60 sft.) = Weight/box 38 lbs. (18
Kg/box)
ESD Welding rod:
330 Linear feet per spool
ElectraFloor Titanium Series meets or exceeds the
requirements of Federal Specifications LF-475a and
SST-312b for flexibility, dimensional stability,
resistance to reagents and residual indentation.
Meets latest
standard of S2020: ANSI/ESD STM97.1-2006
Resistance to
ground in combination with Operator / Heel Grounders /
ESD Flooring
|
 ElectraFloor
Titanium Series: A
monolithic seamless solution to cleanliness,
wear resistance and static control.
