esd floor testing / ESD test equipment

United Static Control Products

Grounded Solutions to Tame the Static Beast!

Tame the Static Beast

Electrical conductivity testing for ESD flooring, anti static mats, esd conductive chairs, carts and MORE!



United SCP Provides a Full Range of ESD Test Equipment

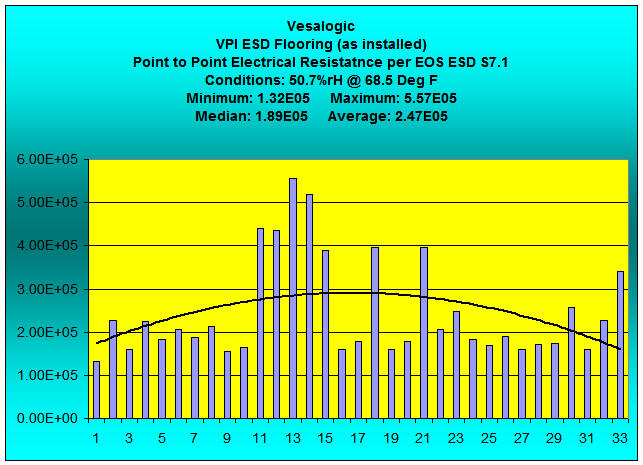

Electrical Resistance testing is imperative for proving material compliance for your stringent ESD requirements (as well as Taming those nasty gremlins at ISO etc :) With a multitude of accessories available this meter can grow with your needs and is so well built it's designed to last a lifetime. Lightweight, versatile, robust and portable this device measures resistivity temperature and humidity.  Ranging from < 1.0E03 to 1.0E13. The SC RT-1000 can use  both internal or external test probes (included with the basic kit). Although not self logging like meters costing over $5,000 it's fully compliant with EOS/ESD Association and European Standards and can give you impressive presentation style reports via adding the data to Excel (as follows).



Double Click to Expand

The RT 1000 system is perfect for measuring ESD flooring, table top matting, esd chairs smocks, wrist straps and footwear All to THE latest ANSI/ESD S20.20 standards! Need to test to 97.1 (combination resistance of technician (in heel straps) with the esd floor? Order the optional hand held electrode as shown below! The OhmStat RT 1000 lets you grow with your testing needs!

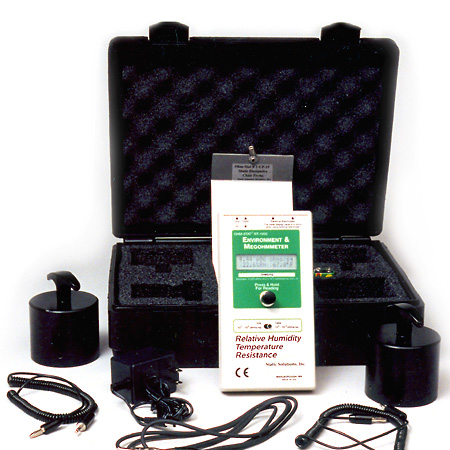

OhmStat SC RT 1000

ESD Material Resistance Test Kit

Double Click for bigger Photo!

Economy, Durability AND Exceptionally accurate!



THE NEXT LEVEL:

ESD material Test Equipment designed to last a lifetime!

  • Easy to read digital display
  • Measures resistivity/resistance from <1.0E03 to >1.0E12 ohms
  • Measures relative humidity-10% to 90% RH
  • Measures temperature: 32°F to 100°F (0°C to 37°C)
  • 10v / 100v dual test voltage ranges
  • Automatic zeroing and power off
  • Power options:120 VAC, 9 VDC (alkaline or ni-cad) power adapters included
  • Meets ANSI/EOS/ESD Standard 11.11
  • CE Approved,  NIST Traceable with Certificate included
  • Options to EXPAND capabilities to garment, wrist straps, heel straps etc etc

includes:

The RT-1000 includes:

  • Two 5lb. 2.5" probes with handles
  • Two 3" parallel surface resistivity probes
  • Dissipative chair test probe (meets ANSI/EOS/ ESD Standard 12.1)
  • Garment clamps (conforms to EOS/ESD 2.1 standard)
  • Concentric ring probe available
  • Foam lined carrying case

Optional or Replacement Accessories



New! MP 6533

Click to Expand.

Note: Meter NOT included



MP 6533, personal wrist strap / hand held test electrode. Useful for testing wrist straps and for testing to the new 2020-2007, 97.1 standard for esd flooring (combination resistance of technician / heel grounders and flooring).



MP-6533 Personal Hand held test electrode (as shown above), $95.00
FP-1745  Personal Footwear Tester, $89.00
MP-1234  Miniature Probes, $250.00
RP-4323  extra 2 - 5lb Resistance Probes, $140.00
GT-4872  Ground Circuit Tester, $25.00
GC-5621  Garment Clips, $65.00





RT-1000 Tester Data Sheet

RT-1000 Accessories Data Sheet

Owners Manual and Operation Guide

Calibration Instructions

PN: SC RT-1000

MSRP Price ea.

$1,200

Weight with 2 ea 5 lb probes: 15 lbs
