Visit our 200,000 Square Foot ElectraGuard static control flooring (epoxy floor paint system) installed at Tyco in Matamoros Mexico! A big welcome home goes out to our ESD Flooring Installation and Certification Specialist just back from Saudi Arabia! Who does the US Navy TRUST for their ESD Flooring needs? Why United SCP of course!



United Static Control Products

Grounded Solutions to Tame the Static Beast!

Tame the static beast BEFORE it takes another Byte!

ElectraFlow ® ESD Ionizers for Static Control

High Power ESD Ionizers for Static Control and Dust Free Manufacturing!



ElectraFlow Standard ESD Ionizers



It's no secret! Items and objects charged with even a minute amount of static electricity attract and hold dust and contaminants (just like the screen of that old school television set you may have at home;) In many cases these contaminants can be briefly removed with a standard compressed air stream only to reattach a few minutes later. Thorough, long term dust removal requires reducing static from "the object" prior to removal with the compressed air stream. Our ionizing air curtains eliminate static from the object allowing the built in high volume air stream to thoroughly remove contaminants for long term dust free packaging and manufacturing. Static generation (often a by product of many manufacturing operations) can also cause a multitude of problems from interrupted pellet flow to annoying static discharges to personnel. ElectraFlow air curtains can be used to eliminate static electricity from ANY charged object! Outstanding high volume, high efficiency and low maintenance. Perfect for a multitude of uses including final packaging and assembly, slitting, web applications and any source of static generation. ElectraFlow: Tames the Static Beast Before it Takes Another Byte! Note: all ionizers meet or exceed stringent specifications as listed below and are fully warranted. Like all ionizers built by any Company they are a non returnable item. Please choose your selection carefully.

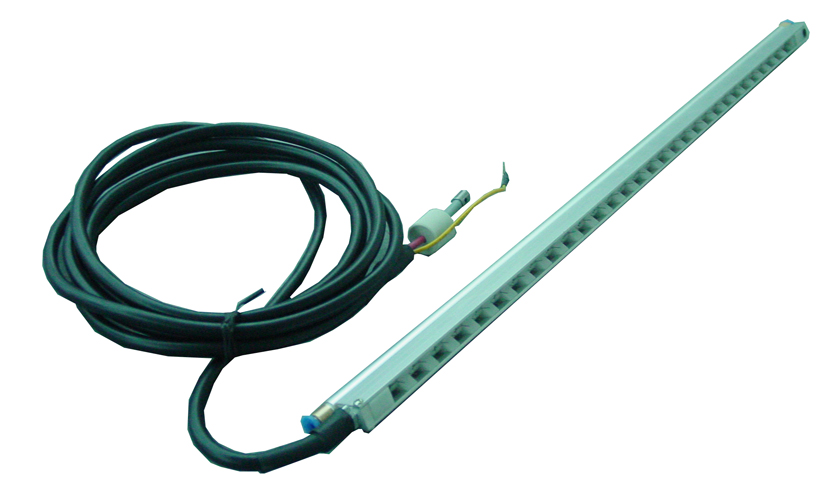

ElectraFlow SL-041 High Volume ESD Ionizing Air Curtain



high output static control ionizers elliminate dust and contaminants in packaging areasOur SL-041 high velocity air curtain works with compressed air for superior targeted removal of contaminants including dust and dirt. This unit features focused air streams. Perfect for finishing applications, packaging, food and beverage manufacturing and printing applications. Available in lengths up to 1,300 mm (700 mm standard). Includes our SL-009 Power supply.

Click to expand photo



ElectraFlow SL-041 High Volume Air Curtain with Tightly Focused ionized air stream.

Price: $447.00 (included SL-009 power supply)



Specifications

HV Cable Length 3 meters
Maximum & Minimum Length 1,300 mm and 200 mm
Typical stocked length Length 700 mm
Operating Temperature 0 ~50°c
Relative Humidity <60%
Current Consumption 0.6ma



Decay Test Results

Distance 100mm 200mm 300mm 600mm 900mm
Decay time 0.3s 0.6s 1.1s 2.3s 5.5s

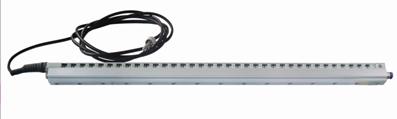

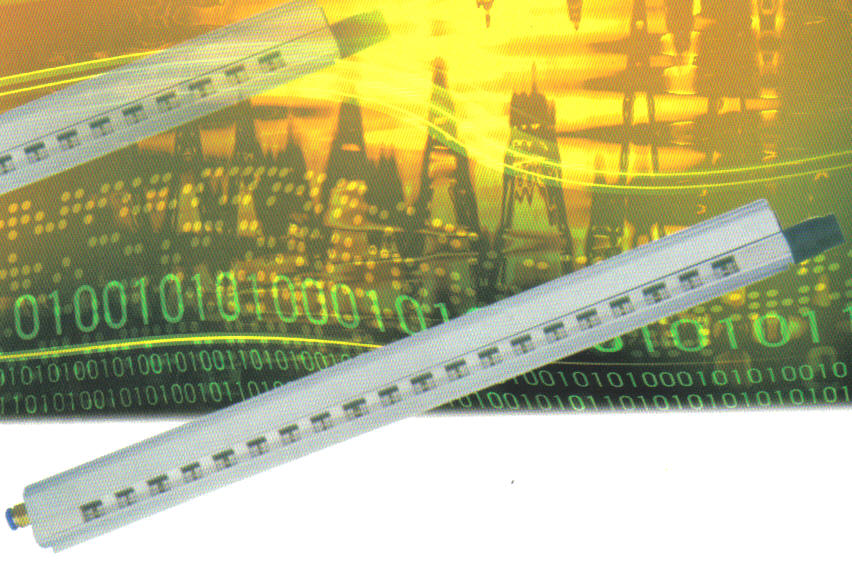

ElectraFlow SL-040 ESD / Contaminant Control Air Bar



  The SL-040 Ionizing Air Bar is a versatile solution to demanding esd and contamination control requirements.  This unit features wide bell shaped air streams, rugged aluminum housing and long life emitter points. Manufacturing excellence by our ISO approved factory.
·Requires our SL-009 Power supply (included with your order).


· esd ionizers remove dust attracted by static electricity

Double click to expand, go back to return



ElectraFlow SL-040 ESD / Contaminant control Air Bar

Price: Call,   FREE SHIPPING* Call for quantity discounts



Specifications

HV Cable Length 3,000 mm
Maximum & Minimum Length 1,500 mm and 200 mm
Operating Temperature 20 ~50°c
Relative Humidity <60%
Current Consumption 0.4ma



Decay Test Results

Distance

Decay Time


Without Compressed Air

With compressed air
20mm 0.02s 0.1s
40mm 0.02s 0.1s
60mm 0.6s 0.3s
80mm 1.7s 0.4s
100mm   0.6s
300mm   1.5s
600mm   2.5s

Testing Voltage

 5Kv~500v

Remarks:

1. Distance measured in mm, decay time measured in seconds.

2. Test data available via ME268A Charge Plate Analyzer

3. Test figures subject to variation of atmospheric conditions



Instruction overview (see full instruction manual provided with unit prior to use of this device). The SL-040 is designed to work with clean, moisture and oil free compressed air that has been filtered to <5 microns. This unit requires a minimum air volume of 15 CFM. Clean and purge all air filters and regulators prior to initial use of this deice. This device is designed to provide years worth of reliable service but IS NOT WARRANTED for malfunctions caused from a contaminated air supply. Set air pressure to the minimum required to do the job. Excess air use is wasteful and dilutes the ionization while increasing the operating noise level of the unit.





SL 006 B

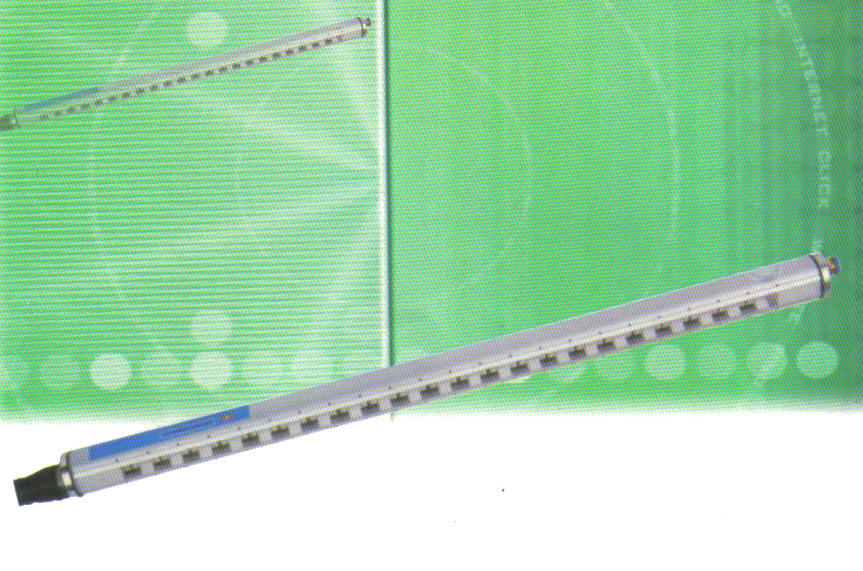

ElectraFlow SL-006B Powerful Static Control AC Eliminator Bar.

 Heavy Duty Applications, rewinding and all web applications

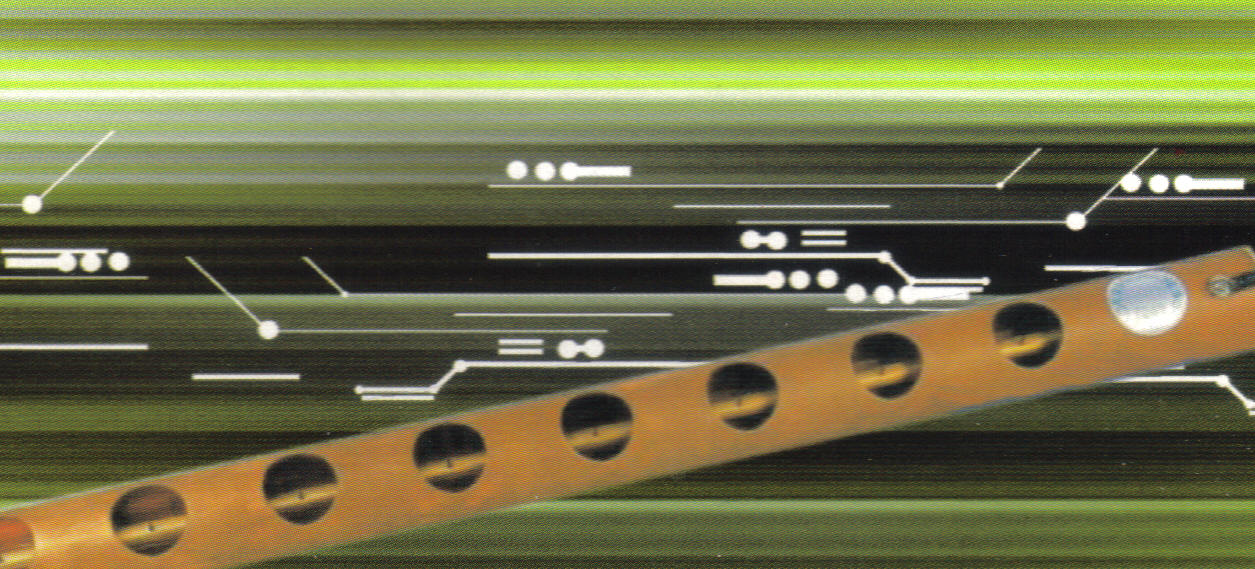

  The SL-060 Ionizing Air Cannon: Industrial Strength Static Control Air Cannon.

Perfect for sheeting, slitting, rewinding, and web applications applications.
· Removes static AND dust in heavy duty high speed manufacturing

Double click to expand, go back to return



ElectraFlow®

 Dependability, Power, Quality and Value!

At United we've provided cost effective solutions in high quality esd ionization for years.  Our recent additions in ionizing air curtains and high performance static elimination bars completes the circle for heavy duty industrial use while our high volume purchasing power and buying direct from our (ISO approved) manufacturer allows us to pass savings AND quality along to your Company.



United SCP,



P.O.B. 19252, 4878 Lake View Circle

Colorado City, CO 81019

United States of America

Direct: 719.676.3928         Fax: 719.676.3929
