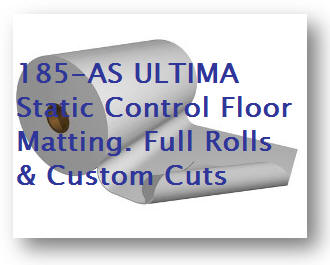

ULTIMA EXTREME SERVICE ESD FLOOR MAT

Tri-Layer Floor Mat for Static Control

Click Here for this products full web page

Buy Online in Pre Cuts and Full Rolls



floor mat for use on thin carpetHandles chair caster traffic!

advanced electrical  properties dissipate static electricityTri-Layer ADVANCED permanent conductivity!

Compliant to FAA, MIL, JEDC and ANSI ReceomendationsFor use on hard surfaces and short pile carpet!

up to SIX foot widths on this esd floor mat materialUp to 4 Foot Widths x 50' Long!

Tough resilient static control floor mat Tougher than nails, Indestructible!



Tri-Layer Conductivity for advanced PERMANENT static control protection that is not dependent on humidity for conductivity. Ultima provides an electrical resistance in the low STATIC DISSIPATIVE Range for a CONTROLLED static decay rate that is somewhat slower than our static conductive floor mats. Ultima is a suitable alternative to expensive anti-static (static dissipative) ESD flooring. It's tough, resilient, permanently conductive and features a non slip texture that also reduces tribocharging.

Ultima Anti Static floor matting is an extremely tough, robust super vinyl manufactured using our proprietary 3 layer construction technique. The wear resistant top surface features a lightly textured slip resistant antistatic material bonded to a full surface conductive inner layer for equipotential grounding. Click here to view anti slip texture and color.

This inner layer of conductivity eliminates electrical dead spots and provides a package resistance that is one of the most reliable in the industry. This layer is further bonded to a static dissipative bottom surface that provides mechanical strength and longevity. Click here for diagram.

THE RESULTS ARE IN: United's provided this material to Industry for over 16 years and the long term feedback has been phenomenal! It's low tribocharging and efficient charge decay make it a perfect choice for any area requiring a static dissipative floor matting AND it's outstanding indestructible mechanical properties allow it to be used on thin pile carpeting as well as hard surface flooring (like concrete and VCT).  An Ultima anti static mat or runner can be a perfect product for use in communications, file server rooms, sophisticated 911 centers, medical manufacturing, command center electronics, electronic manufacturing and more. Ultima - Tames the Static Beast BEFORE it Takes Another Byte!

PHYSICAL PROPERTIES:

THICKNESS: 3/16 of an inch

COLORS:  Gray

BEVEL: Not available - straight cut

AVAILABILITY: 3 and 4 foot widths. Up to 50 feet long.  Full Rolls and Custom Cuts

ELECTRICAL PROPERTIES:

PTP PER ESD 7.1: >1.0E06 <1.0E09

RTG PER ESD 7.1: >1.0E06 <1.0E09

TYPICAL RTG (our testing) @ 30%rH, 100VDC, 71 Deg F: 5.32E07
