ElectraWear Smocks (Part Number EWJ)

Size Chart, Specifications, Cleaning & Warranty

Professional Grade and Fully compliant to the latest ANSI/ESD S 20.20-2021 ANSI/ESD Static Control Garment Standards. Triple Stitched for maximum sleeve to sleeve and panel to panel conductivity. Unisex Design. Light in weight yet INDESTRUCTIBLE in performance. Designed and tested in the U.S.A.

Size Chart in Inches

Size	Length	Chest	Sleeve
Extra Small	27	44	27.75
Small	28	45.5	28.75
Medium	29	47.5	28.75
Large	30.25	48.5	29.75
X L	31.25	50	29.75
X X L	32.5	51.5	31
X X X L	33.75	52	31
4XL	34.75	55.5	32
5XL	35.75	56	32.5
6XL	36.75	57.5	32.75

Note: Due to fabric elasticity all measurements are +/- 1 inch.

How they are Measured

length

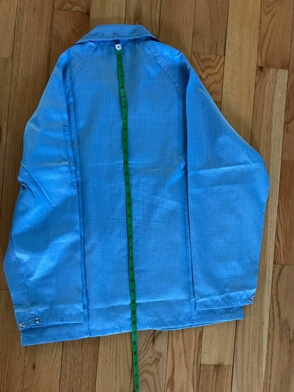

Length: Measured from the center back of the neck to the finished hem.

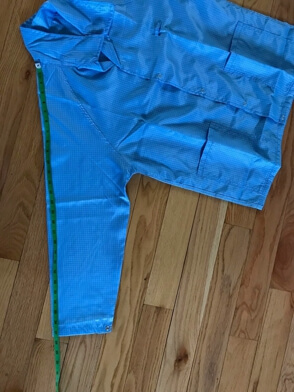

Sleeve Length: Side of collar seam to the bottom of the sleeve hem
chest size

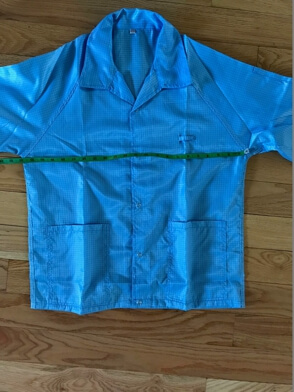

Chest: Measured underarm to underarm times two.

Specifications

Product Qualification per ANSI/ESD S20.20-2021 Static Control Garment per ANSI/ESD STM2.1	PASS at <1.0E11, actual <3.5E07 (static dissipative)
Compliance Verification per ANSI/ESD S20.20-2021 Static Control Garment per ESD TR53 Garments Section	PASS at <1.0E11, actual <3.5E07 (static dissipative)
Glass Transition Temperature	250 degree F.
Composition	96% Poly, 4% nylon carbon monofilaments
Tear Strength:	warp: 3.0 kg / weft: 1.9 kg (JIS L1096-6.15.5-D)
Flash Point:	1040 Degrees F.
Yarn Type, warp and weft	Poly 75D/36F; Conductive 70D/25F polyamide base
Weave	2/1 twill with 5 mm grid
Air Permeability	6.0 CC/CM²/Sec (JIS-L1096-A)
ANSI/ESD S20.20-2021	Compliant to Static Control Garment

Cleaning Instructions

Machine Wash these smocks on gentle cycle, cool to warm water (at temps of under 100 deg F). Use proper amount of a liquid mild non-ionic/anionic detergent (like Tide 2x or similar) that contains no fabric softeners. Do not bleach. Wash smocks separately, do not mix with other industrial laundry. For best results simply hang dry (they dry very quickly). To machine dry: Do NOT use fabric softening sheets. Dry on lowest possible setting (do not dry at temperatures over 100 deg F), do not tunnel dry. These smocks dry very quickly, do not over dry or wrinkling may occur. Hand washing: These smocks may be hand washed with the same basic instructions as above.

Warranty

The conductivity and mechanical performance of this garment is Warranted for one year or 100 washings if the instructions for cleaning as listed in the above table are followed rigorously. This warranty is void if the garment has been permanently altered, burned or defaced.
