ElectraDyne-1000

Electrical Resistivity Test Kit for ESD Control

ANSI / ESD S20.20 Compliant Fast, Powerful and Accurate

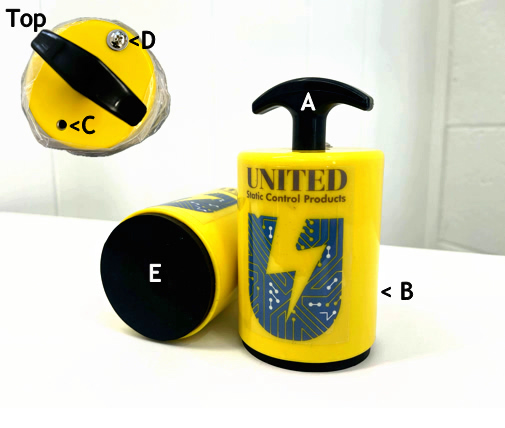

Layout of Industry Compliant Test Electrodes

Figure 4

A) Insulative screw on T handles	D) Screw on type auxiliary connection
B) Insulative safety cover	E) Conductive rubber face
C) Banana jack input for curly cord

COMPLIANT TO THE LATEST STANDARDS for RESISTANCE MEASUREMENT ELECTRODES:

Cylindrical electrode, 2.27 kg +/- 2.5% (5 lb. +/-2.5%) with a diameter of 63.5 mm +/- 5% (2.5 inches +/- 5%) having a contact of electrical conductive material with a Shore-A (IRHD) durometer hardness between 50 and 70.
