ElectraDyne-1000

Electrical Resistivity Test Kit for ESD Control

ANSI / ESD S20.20 Compliant  Fast, Powerful and Accurate



Functions of Back and Top Panels

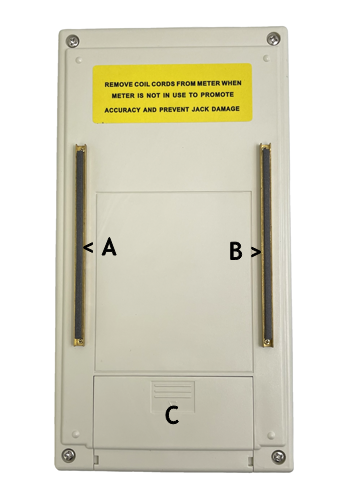

BACK, Figure 2

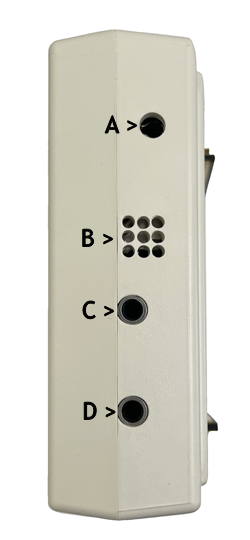

 TOP, Figure 3



Figure 2

Figure 3

A) Internal parallel electrode *

A) case ground **

B) Internal parallel electrode

B) Humidity and temperature sensor ***

C) 9 Volt battery compartment

C) External electrode input ****



D) External electrode input ****

*Disregard ohms/sq when using external electrodes

**Use only for readings above 1.0E10

***Do not cover this sensor

****Use of these ports for external electrodes will disconnect internal electrodes



*
