ElectraTough PN 301-AS ESD floor mats

How to make an inside corner

Our 301-AS conductive interlocking flooring consist of three different molded pieces, centers, ends and corners. If an inside corner is required this can easily be constructed at the job site. Simply overlap two end pieces as indicated in figure 1.  Lay a straight edge at a 45 degree angle from the corner as is shown in figure 2. Score the top end piece with a utility knife. Pick up the scored area slightly and bend it so the scored line is exposed and continue to cut the score until the cut is complete. Place this cut piece on top of the other end and score the bottom piece along the line just cut, repeat the process on the bottom end.

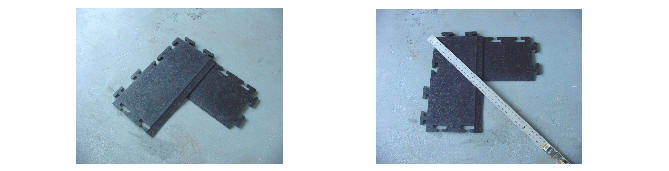

                                   Figure 1                                                                 Figure 2
