ELECTRAGUARD ESD EPOXY SPECIFICATIONS
Mission Critical Conductive Floor Paint
Click Here for this document in a PDF format
  PRODUCT
HISTORY AND OVERVIEW:
ElectraGuard was originally invented for use in
DOD munitions applications in 1992. Over the
years it has been further refined with patented
advancements in structural integrity.
ElectraGuard is exclusive to United SCP and a
proven performer at a realistic price.
ElectraGuard is a two
part epoxy. Unlike mere latex or one part epoxy
floor paints that may last a year or two the
ElectraGuard System provides outstanding
longevity (many clients report a 10 year service
life and the product may easily be recoated if
ever needed). The
system is well suited for application on a
variety of substrates including concrete, wood, well bonded standard vinyl tiles
and more.

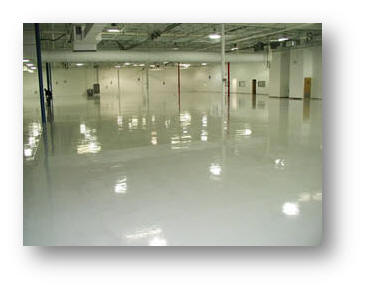

The ElectraGuard ESD
Epoxy Floor Paint System meets or exceeds
the latest most stringent standards of
electrical conductivity and Tribocharge
reduction.

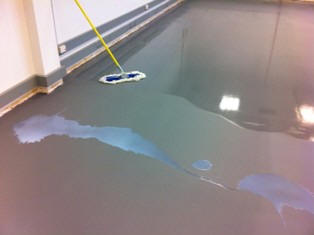

Leave "as is" for low glare matte finish or top coat
with ElectraThane and or ElectraGlaze for a diamond like shine and
ultimate wear resistance.
PHYSICAL PROPERTIES:
|
Gloss Unsealed: Matte Finish
|
|
Gloss Sealed: 88 Min ASTM D1455-82 |
|
Colors: Light Gray, Medium Gray,
Black Ice, Beige, Emerald Green, Sky Blue |
|
Slip Resistance per ASTM-D2047-5:
0.62 minimum (excellent) |
|
Hardness: Shore 68 |
|
Viscosity: 400 to 600 |
|
Solvent: Alcohol, water-glycol ether |
|
Flash point: >212 deg. F |
|
Freeze / Thaw Stability: 0 - Do not
freeze |
|
Dry time at standard air flow: 8
hours (dry to the touch). Open for
traffic in 12 |
|
Typical Coverage: 350 to
square feet per
gallon per coat |
|
Compressive strength over vinyl
tiles: Modified ASTM F 9700-00,
>2,500 |
|
Compressive strength over concrete:
DIN1691 equal to or greater than
that of the concrete. |
|
Indentation impact resistance per
ASTM F1914: DIN EN average of <5%,
max 10% |
|
Abrasion resistance per ASTM D1044:
SC10F wheel, 550 gm weight, cycles
10k, % loss 1.6 |
|
Resistance to wear: DIN EN660-1, M |
|
Film thickness when dry: 1.1 mil per
coat |
|
Warranty: Life time electrical
properties, 5 years wear (see
details for specifics) |
|
Resistance to chemicals: ASTM 925,
DIN EN 423, slight change |
|
Resistance to heat: ASTM 1514 ∆<8
average., max, <∆E=2.0 |
|
Resistance to light: ASTM 1515 ∆<8
average., max, <∆E=6.0 |
|
Fire resistance: DIN 4102, B1 |
|
Color fastness: ISO 105 BO2, >6 |
|
Critical radiant flux: ASTM E648,
NFPA 253, >1.08 w/cm2 (class 1
interior floor finish, NFPA code 101 |
|
Shelf Life and Weight: 24 months, unopened at
70 deg F, +/- 10 degrees. Weight: 10
Pounds Per Gallon. |
|
CA Prop 65: Compliant. No warnings |
|
VOC Content: Meets Federal
Guidelines at <350 g/l. Zero VOC when cured.
NOTE: this product may be supplied
in QUARTS. These are EXEMPT from
State and Local VOC restrictions
nationwide. |
|
Shipping: May be shipped Air
Freight. Non Regulated, IEN
99-3A-3B, HTC 3209.90.0000 |
TYPICAL
ELECTRICAL PROPERTIES UNSEALED (fully cured)*
|
ITEM |
STANDARD TEST METHOD |
UNSEALED ELECTRAGUARD |
|
Electrical Resistance, Surface to Surface (PTP) |
ANSI-ESD
STM7.1 -2021,
EN1081,
IEC61349-5-1.
Tested
@ 100 V / 10 V, 12% /
45% rH, results in ohm |
>2.50E04 <1.0E06 |
|
Electrical Resistance Surface to Ground (RTG) |
>2.5E04 <1.0E06 |
|
Electrostatic Propensity |
AATCC 134-2001 / EN 1815 result in
kV |
<.5 PASS |
|
Static Decay |
MIL-Std 3010C, Method 4046 at
12% Relative Humidity
(formerly FED-STD 101C, Method 4046) |
<0.02 sec PASS |
|
Combination resistance of
technician, heel grounders and
flooring |
ANSI
ESD S20.20-2021 (prequalification), 97.1 |
<1.0E09 Ohms. PASS |
|
Tribogeneration |
ANSI ESD S20.20-2021, 97.2 (prequalification) / IEC 61340-4-5 |
Does not exceed 100 volts.
PASS
(typical <10 volts +/- polarity) |
|
Electrical Conductivity, High
Velocity Medium and
Light Gray |
DOD 4145-26-M, (March 13, 2008)
tested at 500 Volts, RTG/PTP |
> 40 kV and <1 Meg Ohm. PASS |
|
Electrical Conductivity, High
Velocity Medium and
Light Gray |
NFPA 484-2015, tested at 500 Volts,
RTG/PTP |
> 40 kV and <1 Meg Ohm. PASS |
|
Electrical Conductivity, High
Velocity Medium and
Light Gray |
ASTM F-150, tested at 500 Volts, RTG
/ PTP |
> 40 kV and <1 Meg Ohm. PASS |
|
Electrical Conductivity, High
Velocity Black Ice |
NFPA 484-2015, tested at 500 Volts,
RTG/PTP |
> 20 kV and <1 Meg Ohm. PASS |
|
Electrical Resistance, Surface to Surface
Resistance to Ground |
UL 779 |
PASS: No locations below 10,000
ohms, average readings > than 25,000
ohms. |
|
Note:
Resistance values may be easily adjusted upwards
with an additional coat of ElectraThane to
meet minimum DOD resistance levels for use
in 240 volt applications |
TYPICAL
ELECTRICAL PROPERTIES SEALED (fully cured)*
with 2 thin coats of ElectraThane and 1 thin
coat of ElectraGlaze.
|
ITEM |
STANDARD TEST METHOD |
SEALED ELECTRAGUARD |
|
Electrical Resistance, Surface to Surface (PTP) |
ANSI-ESD
STM7.1 -2020,
EN1081,
IEC61349-5-1.
Tested
@ 100 V / 10 V, 12% /
45% rH, results in ohm |
>2.5E04 <1.0E07 |
|
Electrical Resistance Surface to Ground (RTG) |
>2.5E04
<1.0E07 |
|
Electrostatic Propensity |
AATCC 134-2001 / EN 1815 result in
kV |
<.5 PASS |
|
Combination resistance of
technician, heel grounders and
flooring |
ANSI
ESD S20.20-2021(prequalification), 97.1 |
<1.0E09 Ohms. PASS |
|
Static Decay |
MIL-STD 3010C, Method 4046 at
12% Relative Humidity (formerly
FED-STD 101C, Method 4046) |
< .1 sec |
|
Tribogeneration |
ANSI ESD S20.20-2021 (prequalification), 97.2 |
Does not exceed 100 volts.
PASS
(typical <5 volts +/- polarity) |
|
Electrical Resistance, Surface to Surface
Resistance to Ground |
UL 779 |
PASS: No locations below 10,000
ohms, average readings > than 25,000
ohms. |
|
* Please Note:
The above readings are reflective of three
coats applied to concrete and allowed to
cure for a 3 week period prior to testing.
Highly Insulative or conductive substrates such as
ceramic or steel, high humidity (damp) concrete,
ambient humidity, grounding techniques and
coating thickness may alter your final
results. Always pretest the coating to your
internal specifications in a small
inconspicuous area prior to full scale
application. Resistance values may be easily adjusted upwards
with additional coats of ElectraThane or
ElectraGuard NC (rolled with a 1/4" nap
roller). This process will
allow the system to fall in the static
dissipative range of
>1.0E06 and <1.0E09.
|

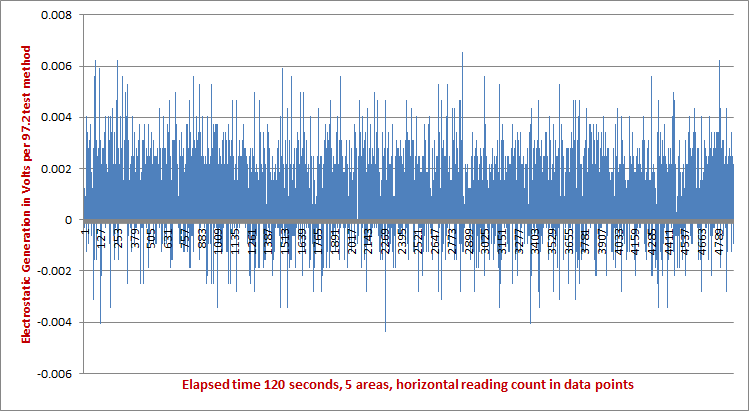

Typical Charge
Generation
Floor Materials and Footwear
Charge Generation of Person in ESD Footwear
Testing per ANSI/ESD STM97.2 Flooring Section
Environmental Conditions: 38.7%rH, 78.9o
F (avg.) Areas 1 through 5
Devices used in this Testing: Monroe Charge
Plate Analyzer, Oscilloscope, PC
NOTE: Device output is 1/1,000th
the actual charge of the plate
Passing Range for this procedure is less
than 100 Volts
Maximum Negative Voltage: (-) 4.37
Maximum Positive Voltage: (+) 6.56
Median Absolute Voltage: (+) 1.25
Average Absolute Voltages: (+) 1.17
|
Area 1 |
Area 2 |
Area 3 |
Area 4 |
Area 5 |
|
1 to 1,079 |
1,080 to 2,003 |
2,004 to 3,081 |
3,082 to 4,312 |
4,313 to 4,904 |
Figure 3, 97.2 Locations by Data Points
|
PN: EG-1, EG-CASE, EG-5,
ElectraGuard ESD Epoxy Floor Paint
|
|
United Static Control Products
Inc |
Document
Number:
SRC10109E |
Original
release date: 01/16/2003
1st revision
date: 04/06/2007
2nd revision
date: 06/09/2015
3rd revision
date: 01/16/2017
4th revision
date: 7/12/2017, PTP & RTG @ 500 volts added
5th revision
date: 8/14/19, change table color for ease of
print.
6th revision
date: 6/12/20, Meets UL Standard 179
7th revision
date: 7/12/20, conductivity < 1 meg ohm cured
8th revision
date: 2/21/21, added voc content
9th revision
date: 3/29/21, new ANSI S2020-2021 standards
|
*
|
|
