PN: USC108-AS: ESD Wrist Strap Assembly

ESD Wrist strap and ground cord for static control

Download this document as a pdf file

PN: USC108-AS ESD WRIST STRAP AND GROUND CORD SPECIFICATIONS

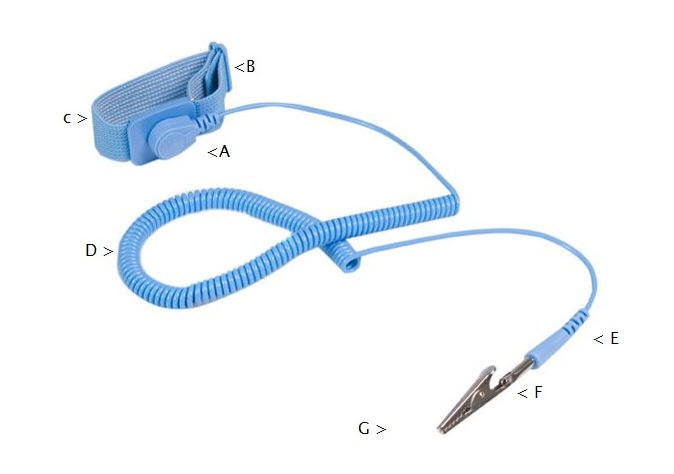

A:  3/8 inch ground cord socket snaps on 3/8 wrist strap stud.

B:  Side adjustable D ring fastener maintains intimate skin to stainless steel metal backing plate contact.

C: Heavy Duty Conductive Elastic Band.

D: Internally braided 8 or 12 long (when fully extended) ground cord.

E: Strain relief (see details below)

F: Banana Plug (see details below)

G: Alligator clip (included) may be slipped over banana plug for optional grounding (see details below).



WRIST STRAP GROUND CORD EXTENDED SPECIFICATIONS

A:  Barrel type banana plug with strain relief. Fits industry standard banana jack  with a size of  .166 inch (4.22mm).

B:  High flex tinsel wound inside core with heavy duty blue insulating jacket.

C:  One megohm, watt, series resistor molded within snap assembly to limit stray current and provide operator safety.

D:  Spring loaded 3/8 inch snap socket.

E:  Alligator clip (included) may be slipped over banana plug for optional grounding.

F:  Optional code imprint.



PN: USC108-AS ESD WRIST STRAP AND GROUND CORD ASSEMBLY, ELASTIC BAND, SIDE ADJUSTABLE



United Static Control Products Inc

Telephone: 719 676 3928

Web Site A: http://ultrastatinc.com

Web Site B: http://Unitedscp.com

Shopping cart web site: http://store.Unitedesd.com

DRAWING NUMBER

SRC10109B

DATE:

Feb. 2016



03/01/2017
