Static Solutions
RT 500
The RT 500 is proof! Great things DO come in small
packages!
Electrical Resistance testing
is imperative for proving esd flooring and matting compliance
for your stringent ESD requirements as well as
Taming those nasty gremlins at ISO etc :) With a multitude of
accessories available this meter can grow with your needs
and is so well built it's designed to last a lifetime. Lightweight, versatile,
robust and portable this device measures electrical resistivity
ranging from 1.0E03 to
1.0E12. The RT can use both internal and external test probes.
 The

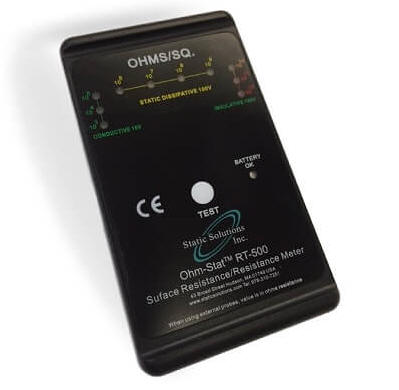

Ohm-Stat™ RT-500 - Measure Surface Resistivity via
parallel electrodes or concentric rings. Tests
Resistance to Ground (RTG), Resistance between
Two Points (RTT) and Volume Resistance using two
5 lb. 2.5” disk probes (optional). Tests each sleeve of a
garment for continuity or performance of ESD
seating. Test shoes, heel grounders, and wrist
straps with optional accessories. Conforms to
ANSI/ESD (S4.1, S7.1, S12.1, and S2.1), EN
61340.5.1, and ASTM-F150 standards. Designed for quality inspection of
incoming materials: floor finishes, floor mats,
table mats, conductive floor tiles, work
surfaces, paints, bags, wrist straps, common
point ground cords, footwear, packaging
materials, clothing, and ESD chairs in static
controlled areas. Data reported via LED display (not a digital display like our
RT 1000).

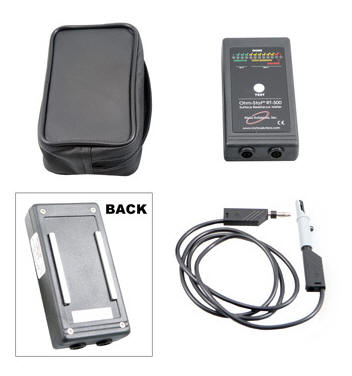

 The RT 500 includes: parallel bar resistivity probes
(back of meter), resistance to ground (RTG) cord, external
probe input jacks, grounding hardware, instructions, 1 year
limited warranty, NIST certificate, 9V alkaline battery and
soft shell carrying case.
-
Multi Range - 103
– 1012 ohms -100
percent accuracy
-
LED Readout
- Easy to comprehend
-
Multi Function - Measures
RTT, RTG and volume resistance
-
Compliant - Meets
ANSI / ESD, UL and most ASTM
standards
-
Compliant - to
most Military and all EIA and EN standards
-
Automatic - 10 to 100
volts, automatic voltage
selector
-
Automatic
- zeroing
-
Portable - Small, light
weight - 2.6 x 5 x 1.2 inches,
8.4 oz.
|
Ohm-Stat Static
Solutions
RT 500
PN: SS RT-500
DATA SHEET
|
 New:
The
RT 501: Includes RT 500, 2 ea RT 500 Five Pound Electrodes
(photo),
cables, heavy duty hard shell case and
power supply. Only $709.00 (available through our sales
department only). Please call 719 676 3928 ext 7002 to place
your order. |
Optional Accessories
available to help your ESD program GROW!
|
Optional or
Replacement Accessories
Click here to buy
RT-500 Accessories online
New! MP 6533
Click to
Expand.
Note:
Meter NOT included
MP 6533,
personal wrist strap / hand held test electrode.
Useful for testing wrist straps and for testing
to the new 2020-2007, 97.1 standard for esd
flooring (combination resistance of technician /
heel grounders and flooring).
MP-6533 Personal
Hand held test electrode (as shown above),
$95.00
FP-1745 Personal Footwear Tester, $90.00
MP-1234 Miniature Probes, $250.00
GT-4872 Ground Circuit Tester, $25.00
GC-5621 Garment Clips, $65.00
CP-1111
Concentric Ring Electrode (for testing esd
bags), $393.00 |
|
|
