UltraStrong
ESD Mat Ground Fasteners,
Snaps, Tooling and Hardware
In order to
operate effectively all anti static and ESD floor and table top
matting must be attached to a reliable earth ground connection.
UltraStrong universal mat to ground cord fasteners are an
integral component - allowing easy placement (anywhere on the
mat) and providing a female socket or male stud for the
subsequent attachment of
ESD mat ground cords.
To achieve reliable grounding of your anti static mat the kits
must be attached securely to your mat (they must not be loose).
Attach the snap kit that best suits your needs. Attach the
appropriate ground cord (supplied separately) to your snap and
attach the ground cord to a reliable ground in your building.
Each mat requires attachment to a common ground point. Mats
should not be daisy chained. A center screw of an AC face plate
cover is an ANSI ESD approved ground point. Table top mats,
bench mats and ESD control accessories such as wrist straps
should be attached to a common point ground (all items for each
bench should be grounded to the same reliable ground point).
Universal Snap Kit for
3/8" (10 mm) cords,
Product 159AS
This
easy to install universal snap kit is designed to fit
nearly every thickness of ESD bench top matting and
floor runner material and simply requires a screwdriver
for fast secure attachment of the fastener to the mat.
Designed to provide a convenient grounding lug for
subsequent attachment of any of our ground cords and all
standard 3/8 (10mm ground cords). Available in bag
o' ten units. Economical, efficient, secure, easy to use
and fully compliant to the latest ANSI ESD and Mil
Standards.
Bag O' Ten kits:
$11.00
More information and Buy Online
Push and Cinch Male for
3/8 (10 mm) cords
Product 161AS
UltraStrong
ESD mat to ground cord push and cinch male fasteners are
supplied in bags of ten fasteners to a kit. Use of these
fasteners allows the user to securely attach a standard 3/8
grounding lug on virtually any ESD matting material (for
subsequent attachment of a ground cord to the fastener). Simply
place push and cinch on mat. Puncture mat with fastener
protrusions or knife. Push protrusions through mat and bend
protrusions over to securely anchor unit to mat. Perfect for
advanced 3 layer materials and other mission critical
applications. Economical, efficient, secure, easy to use and
fully compliant to latest ANSI ESD and MIL standards! An
excellent choice for use with constant monitors and all types of
3 layer ESD matting.
Bag O' Ten
units: $6.20
More information and Buy Online
Push and Cinch Female
for 3/8" (10 mm) cords
Product 160AS
UltraStrong
ESD mat to ground cord push and cinch Female are supplied in
bags of ten fasteners to a kit. Use of these fasteners allows
the user to securely attach a standard 3/8 grounding lug on
virtually any ESD matting material (for subsequent attachment of
a ground cord to the fastener). Simply place push and cinch on
mat. Puncture mat with fastener protrusions or knife. Push
protrusions through mat and bend protrusions over to securely
anchor unit to mat. Perfect for advanced 3 layer materials and
other mission critical applications. Economical, efficient,
secure, easy to use and fully compliant to latest ANSI ESD and
MIL standards! An excellent choice for use with constant
monitors and 3 layer matting.
Bag O' Ten
units: $6.20
More Information and Buy Online

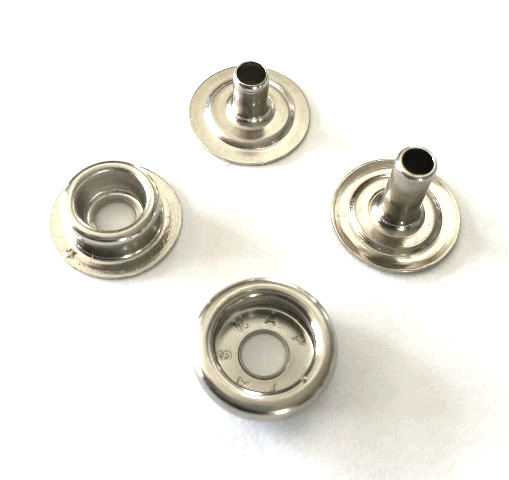

Female and Male Snaps
with 2 lengths of Post. 1 post is .442" tall (a little
under 1/2"). The other post is .292" tall a little over
1/4"). For 3/8" (10 mm) cords
Product 154AS
UltraStrong
ground post and snap kits are designed for use with our
anvil and setting tool. Use of this type of assembly is
slightly more complicated than using our screw type
fasteners but eliminates screws. Use of these fasteners
allows the user to securely attach a standard 3/8"
grounding lug on virtually any ESD matting material (for
subsequent attachment of a ground cord to the fastener).
Simply mark the mat where you wish to install the snap.
Puncture a hole in mat with our revolving punch pliers,
select a post and insert the post thru hole. Place
the appropriate snap on the top side of mat and tap the post lightly
with our post setting hardware (revolving the punch
slightly as you tap places a nice rolled radius on the
post top for permanent compression). The post are supplied in
2 lengths. 1/4" and 3/8' (or to be exact .442 and
.292 of an inch). Economical, efficient, secure,
easy to use and fully compliant to latest ANSI ESD and
MIL standards!
Bag O' Ten kits:
$4.99
More information and Buy Online

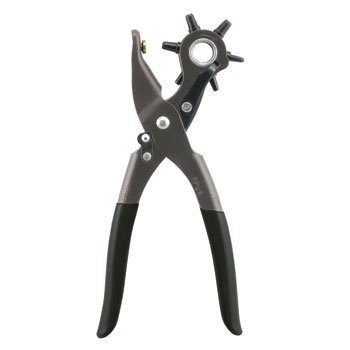

Revolving Hole Punch
Pliers
Product TV582700
This
revolving hole punch provides clean crisp PERFECT holes
in a variety of ESD matting material. Made of plated
steel with six slightly tapered, hollow, case hardened
punches. Provides the following hole sizes in inches:
5/64, 3/32, 7/64, 1/8. 5/32 and 3/16. Non slip grip,
convenient spring tension and self opening. Perfect for
use with our universal screw type PN 159AS and all
standard snap type post including our PN 160AS. It's
important to make the holes in your ESD matting as tight
as possible for good conductivity and this is a tool
that gets it DONE! Economical, efficient, secure, easy
to use and designed for long life.
Price per Unit: $21.32
More information and Buy Online

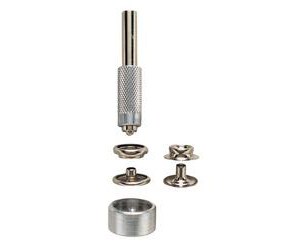

Anvil and Setting Tool
Product TV1267
(Note: The snaps
and post shown below are sold separately)
This
snap set anvil and punch tool is used to provide
consistent tension of the mat between the snap hardware.
Unlike some punches that tear the top of the post this
unit (when used properly) places a smooth rolled radius
on post top. A rolled radius is much stronger than a
torn jagged radius. The tool is designed for easy
rotation while lightly tapping the punch. The anvil is
designed to accommodate either a standard post (on one
side) or a smooth button type post (on the
other). Economical, consistent, efficient, secure,
fairly easy to use.
Price per Unit: $14.95
More information and Buy Online
