ElectraFloor Titanium Series S20.20 Compliant Rolls of ESD MattingTrim to size with NO loss of static control properties. Great Price! For Covering Hard Surface Flooring such as concrete, tile, epoxy and floor paint. Reduces static even in standard footwear!

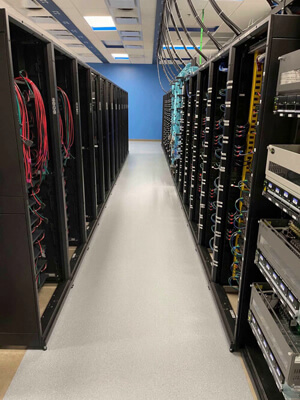

OVERVIEW: Specifically made for controlling the discharge of static electricity in server rooms AND Electronic Manufacturing. Only 2 mm thick for reduced tripping hazards. Easy to keep clean and available in FOUR outstanding colors. Chair caster friendly. 20 year warranty on this product's OUTSTANDING Static control capabilities. In stock and ready to ship.
COMPLIANCE: ElectraFloor Titanium meets the latest standards AND reduces static even on technicians that are wearing standard footwear. it provides flawless combination resistance values with chairs, carts and technicians in heel straps
COMPOSITION: ElectraFloor Titanium features an unbelievably hard wear resistant top surface heat fused to a full surface highly conductive bottom layer for the ultimate in static decay.
PRICE: Most ESD Floor mats cost from $10 to $20 per square foot. This material runs under $6.
INSTALLATION: Allow the material to acclimate at room temperature for 24 hours prior to use. The material will flatten as it warms up. The material may be cut to any size using a standard razor blade knife or industrial scissors. Warming with a heat gun will allow the product to cut like butter! Sheet vinyl edges are normally trimmed by an inch or two to reduce brittleness.
GROUNDING: All ESD Floor mats require attachment to an approved ground source to move the static charge to ground. Each roll is supplied with 2 floor mat ground cords terminated in an eyelet that may be attached to the center screw of an AC faceplate cover or as designated by the ESD Coordinator. The cords are supplied at no charge with each order.
COLORS
Pale Gray
PN: Ti481
Dark Gray
PN: Ti482
Electronic Blue
PN: Ti483
Charcoal Black
PN: Ti404
Buy Now in 33' long rolls
Buy Now in 66' long rolls
SPECIFICATIONS
Surface Resistivity Point to
Point per ESD S 7.1
<1.0E06
Electrical Resistance to Ground
per ESD S 7.1
<1.0E06
Electrical
Resistance per ANSI/ESD S20.20-2021, 97.1
<3.5E07
Tribo
Charging Characteristics per ESD 97.2
< 10
Volts (<100 volts is passing)
Flooring Radiant Panel:
NFPA 253: Critical Radiant Flux
0.73 W/cm2, Class 1
Flooring
Radiant Panel: NBSIR 75-950: Critical Radiant
Flux
Pass,
Class 1
Flooring Radiant Panel:
ASTM-648: Critical Radiant Flux
0.73 W/cm2, Class 1
Smoke Density,
ASTM E-662; NFPA
258; Average optical density in burning /
smoldering mode
<450
Residual Indentation LF-475A
0.002 average
Abrasive Wear, Tabor H-18 wheel,
5,000 cycles, 1,000 gm weight
1.1% loss of weight
Abrasive Wear, Tabor H-18 wheel,
1,000 gm weight to wear layer penetration (end
point)
>20,000 cycles,
<2.0% loss of weight
Static coefficient of friction,
ASTM D-2047-03, James Test average wet, dry
leather
.60 approx.
Static load limit DIN 16961.2
>1,000
PSI
Charge decay time per FTMS
4046-101c
< .17 seconds
Roll Size and
Weight
Size" 4' 6" x 66'
x 2 mm (.080") thick (297 sf per roll). Weight per Roll:
Approximately 268 pounds. Rolls that will
fit on a pallet: 3 each.
ElectraFloor
Titanium Series meets or exceeds the requirements of
Federal Specifications LF-475a and SST-312b for
flexibility, dimensional stability, resistance to
reagents and residual indentation.
ElectraFloor
Titanium Series ESD Flooring Meets ANSI ESD S20.20-2021
Product Qualification and Compliance Verification

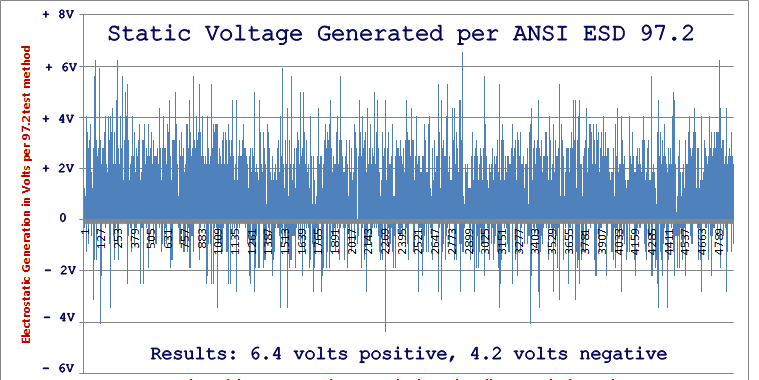

Static Voltage Generation per ANSI/ESD
STM97.2
