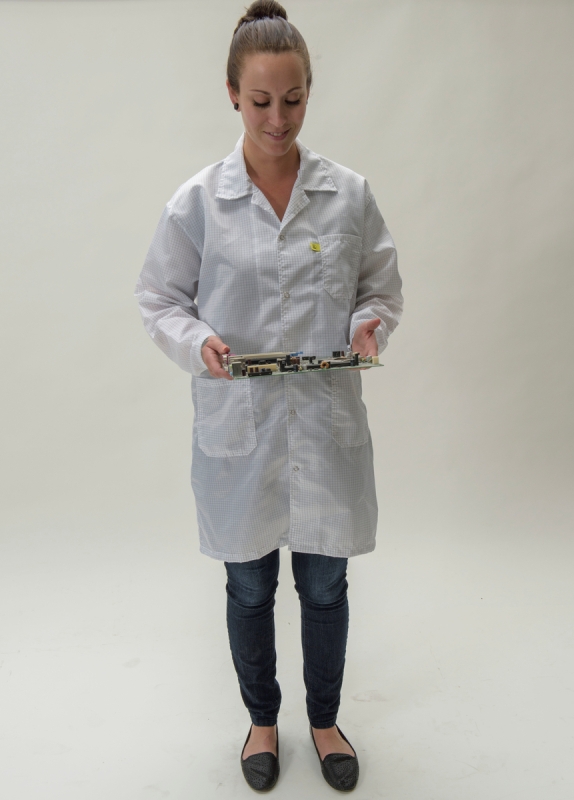

ElectraWear-ESD Lab Coat

Professional Grade! Fully compliant to the new ANSI/ESD S 20.20-2014 ANSI/ESD Static Control Garment Standards. Light in weight yet INDESTRUCTIBLE in performance. Unisex Design, great fit. These garments may be machine washed with great results and are readily available in White and Blue. We Challenge You to Find a Better ESD Lab Coat at TWICE the Price!

ESD Lab Coat

ElectraWear ESD Control Lab Coats. PN: EWC

Now just $15.99 each!

Add to our shopping cart



Our new ElectraWear ESD Lab Coats are used to shield ESD sensitive components from the static generated by the technicians clothing rubbing against their skin. This charge can be substantial and collects even if the Technician is grounded by wearing a wrist strap or heel grounders!

For a brief 2 minute video on how a smock works to shield an electrostatic charge please see our YouTube Video

Professional Grade at a Realistic Price!

ElectraWear ESD Lab Coats are made of an indestructible yet light weight synthetic fabric with a 5 mm grid work of static control monofilaments.

The major seams are double stitched and each lab coat comes with a breast pocket, side pockets, easy to adjust snap style cuffs.

ElectraWear Lab Coats are a breeze to launder and are a true wash and wear fabric!

These garments are highly resistant to stains and may be washed (gentle cycle) in industrial washing machines OR at home (always wash separately and use a mild detergent such as woolite or a very small amount of tide 2x.

Drying: Allow to hang dry for best results or dry using a VERY low heat setting for about 10 minutes prior to hanging.

ElectraWear lab coats significantly shield and reduce static by providing an electrical conductivity that is considered SAFE and approved for use around Energized Equipment.

Static Dissipative: for use around energized equipmentPerfect for Electronic Manufacturing, Server Areas and more.

Safe and Consistent Static ControlRecognized as SAFE around energized equipment.

Compliant to FAA, Motorola and ATIS StandardsCOMPLIANT TO: ANSI/ESD S20.20-2014, Static Control Garment.

2 year life expectancyWarranted for 1 year or 100 washings (details apply, see the bottom of this page).

Low to NO OdorSnap style Cuffs and front closure, Side hip pockets & breast pocket.

Environmentally friendly and LOW VOC contentProfessional Grade - Easy wash and wear care.

Made in the good ol USA!In Stock, Outstanding Value and Professional Grade.



ALTERNATE PHOTO

(click icon to expand photo, use the back button to return to this page)

smock in white icon

White



SPECIFICATIONS

Electrical Resistance

>1.0E06 to <1.0E09 (static dissipative)

Sleeve to Sleeve Resistance

<1.0E09 (static dissipative)

Glass Transition Temperature

250 degree F.

Composition

96% Poly, 4% nylon carbon monofilaments

Tear Strength:

warp: 3.0 kg / weft: 1.9 kg (JIS L1096-6.15.5-D)

Flash Point: 1040 Degrees F.

1040 Degrees F.

Yarn Type, warp and weft

Poly 75D/36F; Conductive 70D/25F polyamide base

Weave

2/1 twill with 5 mm grid

Air Permeability

 6.0 CC/CM2/Sec (JIS-L1096-A)

ANSI/ESD S2020-2014

Compliant to Static Control Garment



SIZES in inches

Size

Length

Chest

Sleeve

Small

35.5

47

33

Medium

36.75

48

33.75

Large

37.5

48.5

34.25

X Large

38.25

50

35

X X Large

39

52

35.75

X X X Large

39.75 54.5 36.25

Length: measured from center back of the neck to the finished hem.

Sleeve: measured from center back of neck to the bottom of the sleeve hem.

Chest: Underarm to underarm x 2

Note: Due to fabric elasticity all measurements are +/- 1 inch.



Cleaning instructions

Machine Wash these smocks on gentle cycle, cool to warm water (at temps of under 104 deg F). Use proper amount of a liquid mild non-ionic/anionic detergent (like Tide 2x or similar) that contains no fabric softeners. Do not bleach. Wash smocks separately, do not mix with other industrial laundry.  For best results simply hang dry (they dry very quickly). To machine dry: Do NOT use fabric softening sheets. Dry on low setting (do not dry at temperatures over 110 deg F), do not tunnel dry.  These smocks dry very quickly, do not over dry or wrinkling may occur.  Hand washing: These smocks may be hand washed with the same basic instructions as above.



Warranty Details and Disclaimers

The conductivity and mechanical performance of this garment is Warranted for one year or 100 washings if the instructions for cleaning as listed in the above table are followed rigorously. This warranty is void if the garment has been permanently altered, burned or defaced.
