CT-8720 / CT-8700ESD Wrist Strap / ESD Heel Strap TesterFast! Easy To Comprehend, Made In The USA, Outstanding Value!
WHY WEAR ESD HEEL STRAPS AND / OR ESD WRIST STRAPS?
Static electricity can easily build to a relatively high
potential on an ungrounded human body. An uncontrolled discharge of
static electricity can cause problems including weakening of
micro components causing occasional hard to find glitches or even a
catastrophic component failure. ESD
wrist straps and esd heel straps are specifically designed to allow the
static charge collected by the human body to flow harmlessly to ground.
ALL ESD STRAPS FAIL, IT'S JUST A MATTER OF TIME!
ESD wrist straps cords can fail mechanically. The resistors
in esd heel straps can give up the battle, BUT by far the highest failure
mechanism of esd wrist and heel straps is compromised skin to strap contact.
Normal wear and tear causes dirt and debris to alter the conductivity of the strap's contact
with the skin. It's a fact! Undetected strap failure or incomplete contact
with the body equals compromised product. WHY OUR OUR UNITS ARE BETTER THAN THE COMPETITIONS!

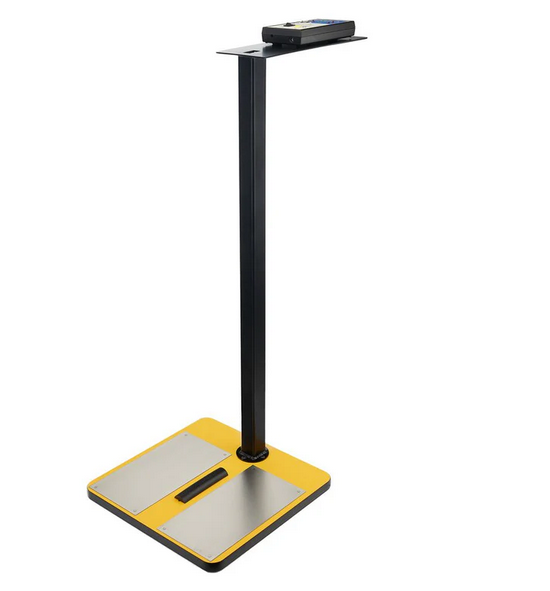

The CT-8700 is our most popular unit for those that need the flexibility of testing wrist straps and heel straps (as most clients like the flexibility of easily moving the unit as their needs change). The CT-8700 is available with a 1000 meg optional upgrade for clients wishing to test to some European standards and is also available with a door opening relay - if your straps don't pass you can't get thru the security doors and into an area.

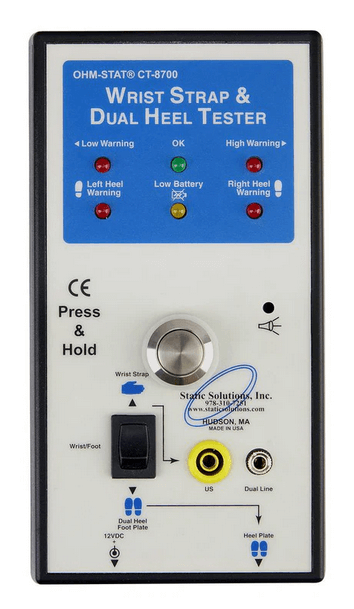

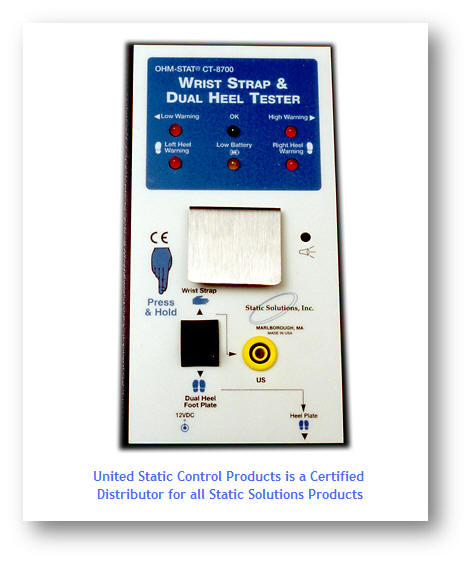

The test unit individually displays an easy to understand pass or fail result via a LED readout and an audible signal. It's NIST certified and in full conformance with US ANSI S20.20, European EN as well as many DIN standards and specifications. This high quality ESD testing instrument accepts domestic AND foreign wrist straps, plugs, 4mm or 10mm snaps and even the dual stereo plugs used for 3-M continuous wrist strap monitors. The unit is warranted for a year and comes complete with a calibration sticker and manual. Yearly recalibrations are available at a cost of $45.00
Click here for manual (pdf file download) Click here for data sheet (pdf file download)
FAST, POWERFUL PERFORMANCE, OUTSTANDING VALUE!
OUR PRICING AND ORDERING INFORMATION!
