UltraStatic
Mission Critical ESD Chair Mats for Carpeting
Ultimate
Static Control Chair Mats Compliant to Latest ANSI Standards!
-
Perfect for electronic assembly,
FAA control towers and TRACONS
-
Ultimate
protection for sophisticated electronic offices & server rooms
-
Ideal for Sound,
Radio, Television Studios and 911 Command Centers
-
Protects and
fulfills warranty requirements of ESD and standard carpeting
-
Conforms to the latest specifications for ESD flooring
per ANSI S20.20-2007
Possibly you've just installed
new static control ESD carpeting on your raised access floor.
Perhaps you've finally installed standard (high grade)
carpeting in your sophisticated networked offices. Either way you
probably understand the need to protect your investment in
electronics AS WELL as comply with the warranty requirements for your
new carpeting. Read your warranty, NO carpeting, including
our state of the Art ESD Carpet Tiles
are warranted from the continual abuse of rolling chair casters.
Simply put, without a mat your warranty is toast! Here's the
problem. You may have just installed the best of ESD (static
control) carpeting BUT when you place a standard chair mat on top of the
conductive fibers you form an insulative barrier eliminating any
possibility of charge decay through the insulative mat SO you find a
anti-static mat on the web. Some, don't even need a ground cord,
GREAT you say but the truth of the matter is they are really smoke and
mirrors! PLUS when they get worked HARD as in 24 / 7 service they
break, warp or crack!
Are your
old broken mats filling
the recycle bin?
Our
ESD Chair Mats are Warranted for Life!
The problem with
ordinary anti-static chair mats is they rely on ambient environmental
humidity to render the clear plastic material
even slightly conductive. When the humidity is high
(and when you need your mats to work the least) they may
provide slight electrostatic conductivity. When the humidity is low (and when you
need your mats to work best) they simply STOP working! In essence
they're pretty much insulators, they just don't meet standards for TRUE static control protection NOR do
they meet the stringent requirements of the electronic manufacturing
industry, sophisticated networked offices or FAA / 911
control centers, labs or mission critical Military operations.
On the
bright side they're CHEAP!
|
TYPICAL CLEAR VINYL ANTISTATIC CHAIR MATS
FAIL ANSI ESD S 2020-2007!
Click to
Expand
Ordinary anti-static chair mats rely on the
ambient humidity in the environment to render the mats slightly
conductive. When the humidity is high (>60% rH) they sometimes
meet the old specifications for conductivity (coming in slightly
less than1.0E09 in electrical resistance) BUT when the humidity drops they become
insulative! A mat's electrical conductivity to ground tells the
tale. Does this mat really work? Not really. A piece of
dry wood comes in about as conductive as this popular mat AND
it's not even close to being conductive enough to comply
with the latest specifications ANSI ESD S20.20 requirements for
static conductive flooring or even the less stringent new 97.1 technician / heel straps / flooring
requirements. |
A mat's electrical conductivity to
ground tells the tale. Does this mat really work? Not
really. A piece of dry wood comes in nearly as conductive as this
popular mat AND it's not even close to being conductive enough to
comply
with the latest static control specifications.
Eventually
ALL materials
get rid of static.
The questions is can your critical electronics wait?
We start by providing a high grade
engineered laminate selected for the pile height of your carpeting. If
for use on ESD carpeting we provide grounding tabs that come into contact
with the underside of the spike mat for subsequent grounding via you esd
flooring. in the case of standard carpeting we forego these tabs and
provide a military style ground snap attachment for subsequent attachment of
cord- to-ground assembly.
Engineering Update: As of 05/10/09 we have changed the substrate for our esd
chair mats from spiked or flat plastic mats to engineered 1/4 laminate.
This change in manufacturing procedure allows us to now warrant the mats for
lifetime performance against breakage, wear and loss of electrical
conductivity.
|
1
|
2
|
3
|
|

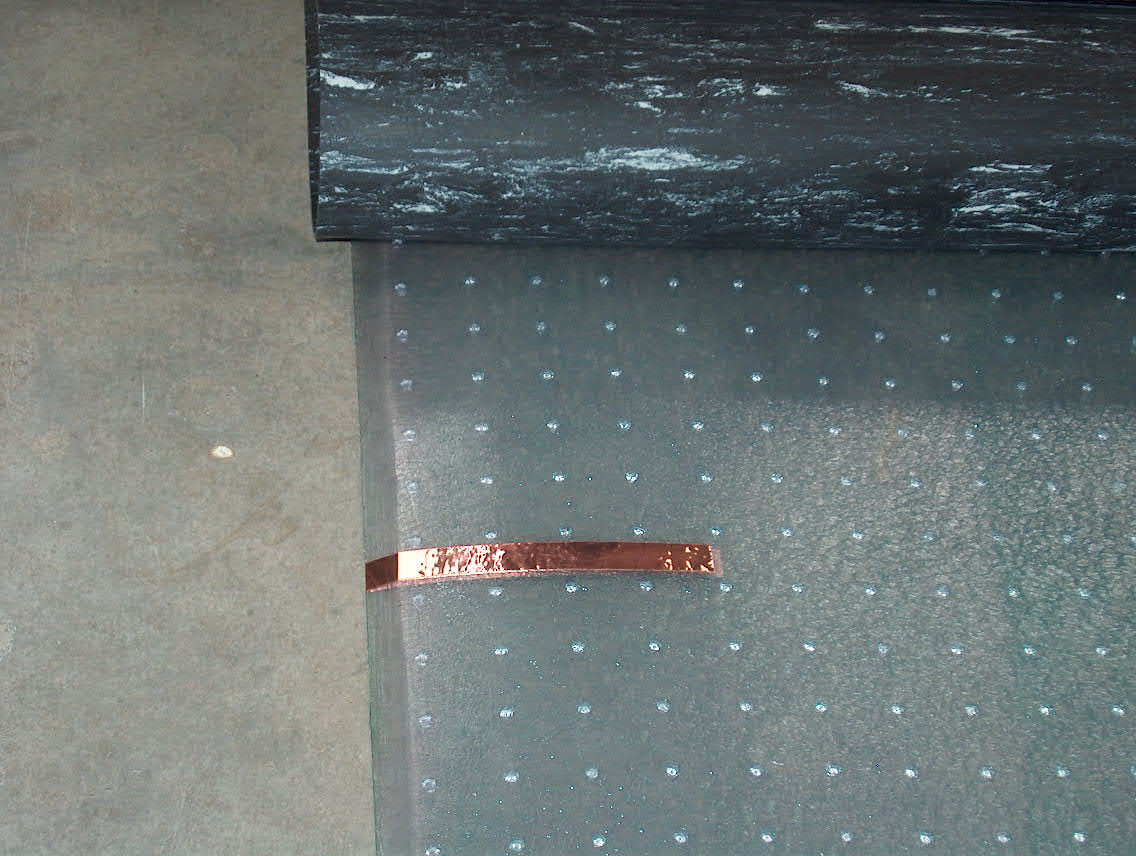

We've inserted small grounding tabs
on the engineered laminate substrate. This
mat is made to contact esd carpeting and will require NO cords. |

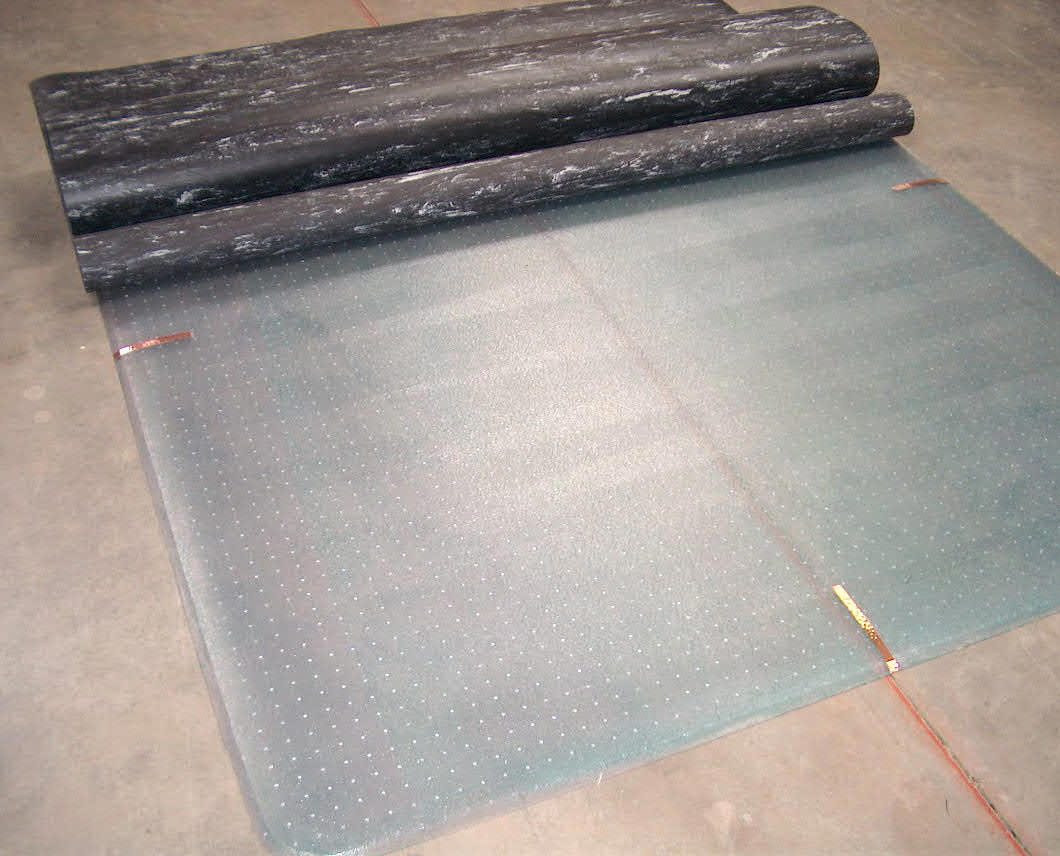

This
engineered laminate has had the selected
material (esd sheet flooring) roughed out, grounding straps applied and has been
covered with our unique esd
conductive releasable adhesive
 |
This client has chosen a black and white
covering, BUT with multiple color selections
available colors and styles are your option
our
mot popular colors
|
Most Popular Color
Options
|
Pale Gray
PN: Ti481 |
Dark Gray
PN: Ti482 |
Electronic Blue
PN: Ti483 |
Clean White
PN: Ti480 |

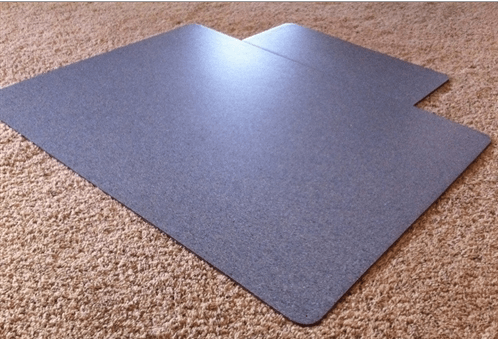

UltraStatic Control
Chair Mat for Carpeting
Part# 40220C Plus "Style & Size"
Chair Mats must be shipped
flat (cannot be rolled) Must be shipped by surface freight. Please Call for rates.
Shipping charges vary according to number of items ordered, the weight of the items and
the method of shipping. These chair mats are for
use on standard pile carpeting and not recommended or warranted for metal
chair casters. Note:
Items marked with an asterisk (*) must ship via motor freight (can not ship
via regular UPS or FedEx). Standard shape mats over 4' width times "x" long
may require a seam. Wide lip, modular and secretarial mats may
require a seam. This seam is heat welded and slightly evident but does not compromise
conductivity or performance of the matting.
|
|
|
