Modular Peel & Stick Titanium ESD Tiles

Ultimate static control for use over all hard surface flooring and thin pile direct glue down carpeting. ESD Tiles BUY NOW Button

Easy & Fast No Odor Installation, Permanent Static Control that MEETS the latest ANSI ESD Standards. Perfect for use in Electronic Manufacturing, Labs, Command Centers - ANY mission critical static control environment.

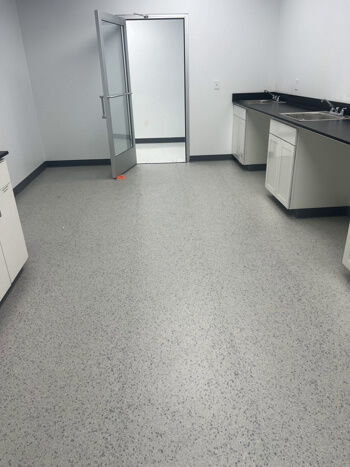

Modular ESD Tile Installation

Titanium Electronic Blue Modular ESD Tiles in Control Room



INDUSTRY EXCLUSIVE! Patent Pending and Only from United SCP!  Titanium Modular peel and stick esd tiles feature a case hardened static dissipative top surface bonded to a full surface static conductive backing laminated to a unique peel and stick adhesive for easy installation over all hard surface flooring, carpet tiles AND thin pile glued down carpeting.

No Messy Adhesives, Odors, Disruptions or Edging Headaches

Typical click and lock modular esd tiles are a hassle! Due to their thickness they present a significant tripping hazard and require hard to install ramped edges. They can't even go wall to wall without cutting off the interlocking tabs! Not so with Titanium Modular ESD Tiles! ElectraTile Modular Tiles are fast and EASY to install. For applications over insulative subfloors like carpet, concrete VCT, standard epoxy and painted flooring simply place the peel and stick 1/2" wide ground foil over the substrate, peel off the liner from the back of the esd tile and place the tile over the grid.

Simply Peel and Stick. That's It!

No messy adhesives, odors or disruptions. Your ESD floor is immediately ready to use and fully compliant to the latest most stringent standards. And the esthetics and colors? Awesome! An excellent choice for use in Electronic manufacturing, file server areas, 3D printing, control rooms and other mission critical static control environments! ElectraTile is not dependent on humidity for conductivity. It is static conductive and easily passes S20.20-2014. Drag chains and ESD caster interface flawlessly with this material and it is is popular for use in meeting NFPA-484-2015.

Peel and stick esd tile iconA mere 1/16" thick!  Eliminates tripping hazards.

MEETS latest ANSI-ESD S20.20-2007 standardsTougher than nails and easy to keep clean.

Trim to size with no loss of conductivityTrim to fit any size area with NO loss of static conductivity.

Lays FLAT right out of the box iconEasy to use and FLAT right out of the box.

MEETS latest ANSI-ESD S20.20-2007 standardsBonds to sealed concrete VCT, epoxy, steel and more.

MEETS latest ANSI-ESD S20.20-2007 standardsExcellent for use on thin pile (glued down) Carpeting.

MEETS latest ANSI-ESD S20.20-2007 standardsExcellent for use on ALL brands of ESD Carpeting.

Works in conjuction with an electrically conductive adhesiveChairs roll Smoothly.

Permanent electrical propertiesReleasable bond, tiles may be removed and replaced if needed.

Permanent electrical propertiesMay be vacuumed with out loss of bond.

Works in conjuction with an electrically conductive adhesiveOdor free adhesive, dependable bond.



Colors

Pale Gray

PN: Ti481

high resolution

Dark Gray

PN: Ti482

high resolution

Electronic Blue

PN: Ti483

high resolution

Clean White

PN: Ti480

high resolution


Pricing

$34.99 each, ($8.74 per square foot). ESD Tiles BUY NOW Button

Compare to Free Style Interlockers at $14.26 psf.
Compare to our 40220 HSB hard surface mats at $11.90 psf.
Compare to our 40220 HSC carpet mats at $14.89 psf.


MORE INFORMATION / DOWNLOAD CENTER

Click HERE for Specifications

Click HERE for Chemical Resistance

Click HERE for Samples

Click HERE for Installation

Made in the U.S.A!

Maintenance: Remove abrasives by dry dust mopping or vacuuming on a daily basis. Lightly damp mop as needed with a dilute solution of ElectraClean and water. Should a high gloss be required this product may be coated with 2 thin coats of ElectraGlaze ESD floor finish and spray buffed to a diamond like shine using ElectraShine. Two thin coats will not significantly alter the products outstanding electrical properties and the ElectraGlaze provides an easy to strip sacrificial coating.

Return Policy and Warranty: ElectraTile Peel and Stick tiles are warranted with lifetime wear properties. They are a custom made product and are non-refundable.

Installation Quick Read:

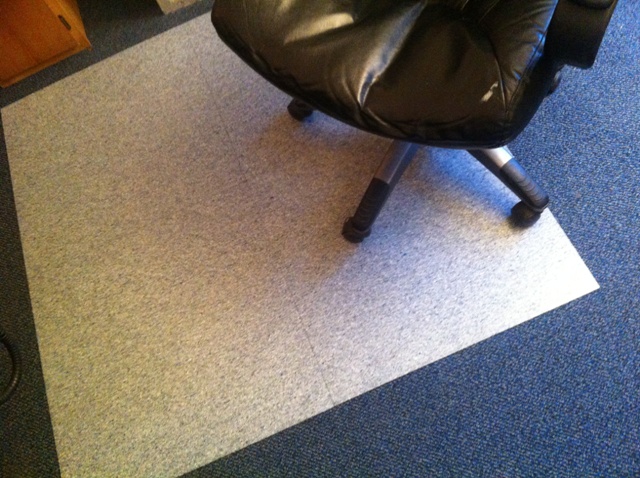

Peel and Stick ESD Tiles over ESD Carpet

Our peel and stick esd tiles are often used as chair mats for use over ESD Carpet! Roll Smoothly My Friend! PERFECT for FAA Command Centers, Tracons and labs! NOTE: No ground grid is needed when used for covering esd tiles or other esd conductive surfaces (such as a grounded clean steel substrate or esd carpeting). For covering electrically insulative surfaces such as standard VCT, glued down carpeting, epoxy and other electrically insulative floor covering install an easy to apply electrical ground grid for optimum conductivity.
