ELECTRATHERM ESD Table Top Mats

MEETS ANSI ESD S20.20-2021 Product Qualification and Compliance Verification!

Dual Layer Conductivity, Heat Resistant, Permanently Conductive and RoHS Compliant. Designed for Static Control Applications in Electronic Assembly and ALL Mission Critical ESD Control Areas! Mat Kits and Full Rolls!

Free Shipping on Full Rolls in the Continental USA!* New! Common point ground cord included at NO CHARGE with Table Top Mat Kits made from this  Material!

Heat Resistant, Easy to Keep Clean

ElectraTherm ESD table top matting utilizes a proprietary 2 layer construction of a static dissipative top layer bonded to an electrically static conductive bottom layer. This unique configuration provides years worth of effective, reliable, fast yet COMPLIANT removal of static electricity from the technician and items placed on the matting surface.



ElectraTherm works great with our constant bench top monitors and meets THE most stringent requirements of the Military and ANSI ESD S20.20-2021. ElectraTherm is RoHS compliant, resistant to most chemicals used in the manufacturing environment and features permanent non humidity dependent electrical conductivity.



PHYSICAL PROPERTIES:

THICKNESS: .072 +/- .010

COLORS: Sky Blue, Dove Gray

AVAILABILITY: Full Rolls and Custom Cuts.



ELECTRICAL PROPERTIES:

PTP per ANSI/ESD STM4.1-2017: 4.1, >1.0E06 <1.0E09

RTG per ANSI/ESD STM4.1-2017:  >1.0E06 <1.0E09



Heat and Solder Resistant ESD Mat IconHeat and Solder Resistant

Indestructible ESD table Top MatPermanent static conductivity

low low static generationRobust and Easy to Keep Clean

Clean Surface with NO carbon SloughingDependable Performance that always PASSES audits

Perfect AntiStatic Mat for Non Critical Packaging AreasPerfect for Mission Critical ESD Control Areas

Indestructible ESD table Top MatExcellent for use with constant monitors

ESD rubber matting iconNow Available in 2 colors, Gray and Blue



Specifications

Distribution Cut Sheet



Noel's Surprised! Comparison of ElectraTherm to the Competition's.

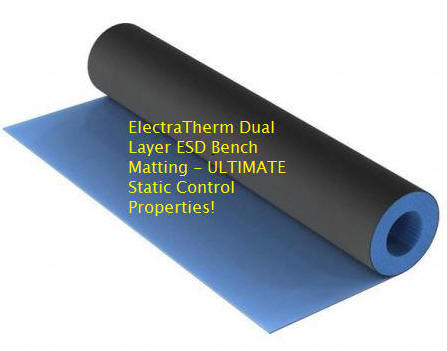

2 Layer Rubber ESD Table Top Matting

Part Number: 165-AS

Delivered Roll Pricing:

2' x 50'

$766.74

Free shipping IconDelivered Pricing (continental USA only)*

Click here to purchase, use the drop down to select your size ESD tile - Buy Online

30 inch x 50'

$958.21

3' x 50'

$1,149.85

4' x 50'

$1,533.14

Pre Cut Pricing

Quantity Discounts Available

We can cut ANY Length up to 50' long!

Call us if you don't see the size you need and we'll add it to the shopping cart!

2' x 2'

$41.56

Ground cord included with each custom cut mat at NO Charge!



CALL FOR QUANTITY DISCOUNTS!



Click here to purchase, use the drop down to select your size ESD tile - Buy Online

2' x 3'

$59.90

2' x 4'

$78.20

2' x 5'

$96.50

2' x 6'

$114.80

2' x 7'

$133.10

2' x 8'

$151.40

2' x 9

$169.70

2' x 10'

$187.99

30" x 2'

$50.75

30" x 3'

$73.62

30" x 4'

$96.60

30" x 5'

$119.50

30" x 6

$142.10

30" x 7'

$164.95

30" x 8'

$187.80

30" x 9'

$210.65

30" x 10'

$233.99

3' x 2'

$59.90

3' x 3'

$87.31

3' x 4'

$114.68

3' x 5'

$142.10

3' x 6'

$169.70

3' x 7'

$196.94

3' x 8'

$224.36

3' x 9'

$251.78

3' x 10'

$279.20

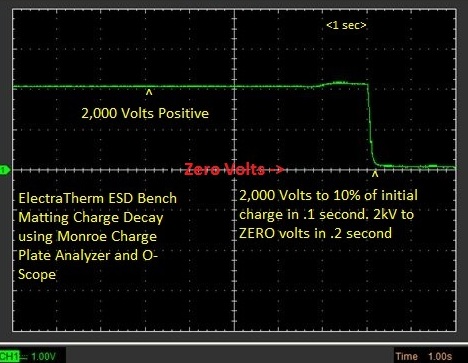

Static Decay Rate, 2kV to 0 Volts in .2 second

ESD Matting Static Decay Photo using Monroe Charge Plate and Oscilloscope





Youtube Demo of Heat Resistant Matting

YouTube Product Demonstration
