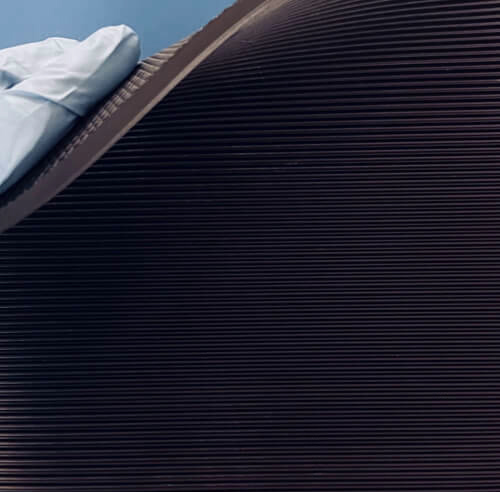

Non Conductive Corrugated Switchboard Matting

Non Conductive Safety Matting for use around high voltage power sources. Outstanding selection AND Pricing, fully Compliant. Custom Cut Lengths and Full Rolls!

Product # 206-AS

High Voltage Switchboard Matting helps isolate the technician from high voltages

206-AS High Voltage Switchboard Safety Matting Helps Isolate a Technician from High Voltages



This corrugated high voltage switchboard matting is specifically designed to provide the utmost in electrically insulative floor matting. 206's corrugated texture provides even footing and added dielectric stability helping to further isolate the technician from ground. It's easy to clean and resistant to most of the common chemicals used on the job site.



Although designed for use as a high voltage switchboard mat, 206-AS, when tested to S7.1 @ 100 volts point to point and resistance to ground provides an electrical resistance of >1.0E12 at 10%rH making it a perfect insulative substrate for use as a bench top covering for accurately testing ESD control bags, smocks, table top materials and other static dissipative items to the various new ANSI ESD S20.20-2021 and TR-53 standards.

  • For hard surface and short pile carpet applications

  • Corrugated surface provides non-slip protection

  • Insulates and prevents shocks up to 40,000 volts.

  • Ozone and flame resistant

  • Color: Black

  • Dielectric Strength - 30,000 VAC

  • Insulating strength up to 40,000 volts

  • Color: Black. Note not tested to Mil Specs

  • Tested and compliant to ANSI/ASTM D-178-93 Type 2, Class II

  • Thickness: 1/4”

FREE SHIPPING for all full rolls of this Electrically INSULATIVE Switchboard Matting going to our Clients in the Continental U.S.A. Details Apply. Note: Please allow up to four weeks for us to ship this product.



Download Product Specification Sheet



Warranty: United SCP's Non-Conductive Corrugated Switchboard, Product 206-AS is warranted to meet the physical and electrical property specifications for the life of the product.  Product 206AS meets the specifications of ANSI/ASTM D178-01, Type II, Class 2 and all associated Electrical and Fire Resistance Standards.



Part Number: 206-AS

Pre Cut Pricing and 75' Long Full Rolls

2' x 4'

$73.00







Click here to purchase these precut sizes, use the drop down to select your mat size ESD tile - Buy Online

2' x 6'

$107.00

2' x 8'

$141.00

2' x 10'

$175.00

3' x 4'

$110.60

3' x 6'

$163.40

3' x 8'

$216.20

3' x 10'

$269.00

4' x 4'

$160.20

4' x 6'

$237.80

4' x 8'

$315.40

4' x 10'

$393.00

This months hottest new products for static control bulletSave! 2' x 75' Full Roll

$1,065.60

Free shipping for this esd table top mat Delivered Pricing (continental USA only).* Click here to purchase these 3 full sized rolls ESD tile - Buy Online

This months hottest new products for static control bulletSave! 3' x 75' Full Roll

$1,650.00

This months hottest new products for static control bulletSave! 4' x 75' Full Roll

$2,419.20





Sales Associates: Old school precut price calculator

*Terms and conditions of free shipping program
