Professional Grade ESD Heel Strap

 THE most popular ESD Heel strap in the Nation!

Outstanding Quality, Longevity and Static Control PROTECTION

Reversible! Doubles the Life Span! Now as low as $2.93 each!

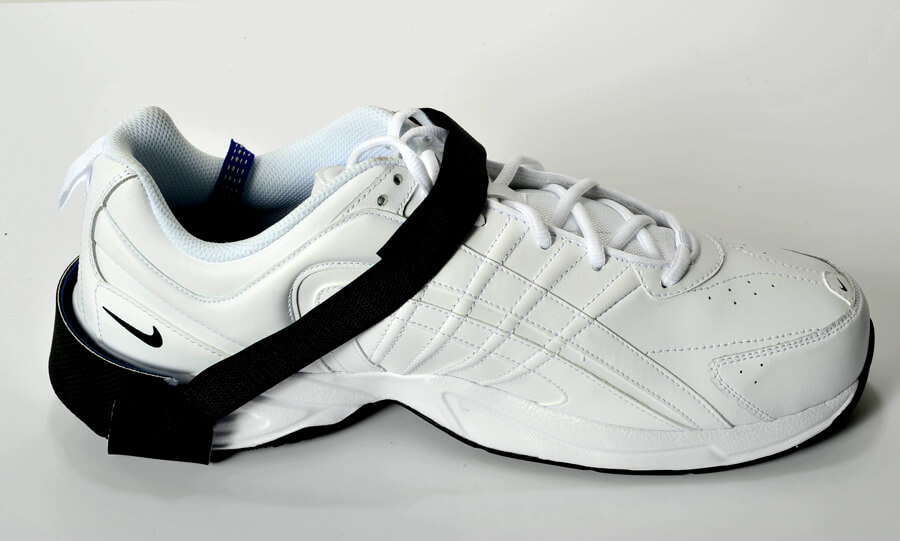

ESD Heel Strap on sneakers

US109-AS ESD Heel Strap for Static Control. Innovative Reversible Design Doubles the lifespan! As low as $2.93 each.

Click HERE for the Big Picture

Click HERE to Purchase Online



These professional grade ESD heel straps have earned their stripes as THE most popular heel grounder in the nation by providing quality, performance and value for over 20,000 satisfied clients.

The US109-AS provides outstanding longevity in concert with flawless electrical performance that won't disappoint when critical static control protection is a must. This strap is manufactured using a dual ply tire grade conductive rubber with an anti-slip texture (for employee safety) and an easy to adjust Velcro style tension adjustment.

It's matched with a silver fiber loaded conductive ribbon that is placed in the shoe (normally between the sock and the shoe). This allows the static charge to migrate from the users body around the electrically insulative shoe and to the conductive black portion of the strap that contacts the ESD floor or mat. This innovative strap is a fully reversible design that DOUBLES the straps longevity. Each strap contains a built in 1 megohm safety resistor. They are lead free (RoHS compliant) and are individually packaged (for secure deployment). These straps meet or exceed the most stringent ANSI / JEDEC / MIL and ESD Standards.

We challenge you to find a better strap at twice the cost!

  • Rugged, WIDE heel cup for the utmost in static decay

  • Fully reversible, doubles the life!

  • Popular "cup" style.

  • Non marring inner surface, scuff resistant outer surface.

  • Decay rate <0.01 second!

  • Extra long 18" conductive ribbon stays PUT!

  • 1 meg ohm resistor for safety

  • Acid, chemical and heat resistant

  • Velcro hook & loop tightening system for ease of use

  • Meets the latest ANSI/ESD S20.20-2021 Standards

  • Tested to ANSI/ESD SP9.2-2019

  • Extremely Clean and RoHS 3 Compliant!

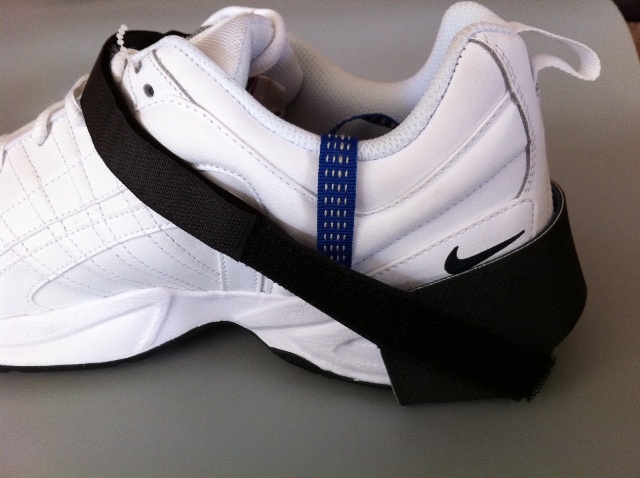

Alternate photo installed on shoe

Click for photo of strap prior to placing in individual bag

Why Wear ESD Heel Straps?



Part Number: US109-AS

Single Straps: $3.30 each

Bag of Ten: $29.97

Bag of 100: $293

Click Here to Purchase from our Shopping cart

Single strap shipped via US Mail: $4.00 + the cost of the strap
