VPI EsD Tiles, ESD Tile flooring Experience the VPI Difference

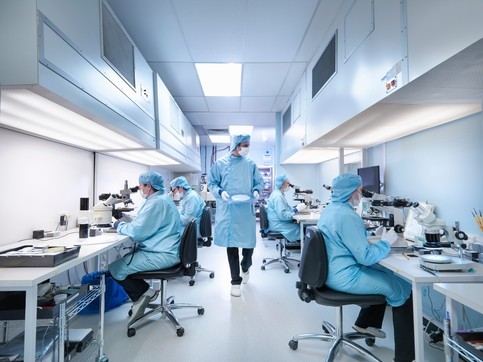

VPI conductile and statmate ESD Tiles are designed specifically for THE most demanding of manufacturing environments; clean rooms, labs, hard drive manufacturing, DOD and Munitions. Any application requiring exceptional wear characteristics in concert with the highest surface finish and most consistent electrical properties of ANY ESD tile on the market!
SHINE, VERSATILITY PERFORMANCE - SYNONYMOUS WITH VPI
VPI Conductile (<1.0E06) and Statmate (static dissipative) esd floor tile: feature an extremely advanced vinyl rendered permanently conductive via micro encapsulated conductive elements in concert with an extremely low maintenance high micro finish top surface. VPI THE utmost in electrical performance, aesthetics AND resiliency . VPI's micro ground edges provide a near seamless appearance AND unlike "typical" imports (and most US made) ESD Tiles that are loaded with reconstituted, cheap limestone based recycled clay fillers, VPI esd vinyl tiles have one of the highest static load limits in the industry! VPI's encapsulated conductive elements (distributed evenly throughout the tiles) provide exceptional electrical consistency and thorough-tile-to-ground charge decay. Available in multiple designer colors offering the flexibility to meet your design criteria while providing outstanding protection and conformance to THE most stringent of specifications including EOS ESD 20.20! The performance of this esd tile is not dependent on wear layers, subsurface layers or internal anti-stats and doesn't require ESD floor finish (like Armstrong). VPI ESD Tiles don't flake and crumble (like Flexco's) and are NOT dependant on humidity (like ElectraFloor SD). VPI esd tiles features a lifetime warranty on electrical conductivity and are made in the good ol USA! Our unique conductive Permanent Bond fiber loaded adhesive is furnished at no charge: This easy to use adhesive features the ultimate in electrically consistent conductivity with excellent bond strength. Cleans easily with soap and water. No more time consuming mixing (as is required with those nasty epoxy based adhesives, no more problem causing variables and no more staining problems either)! Nope no need for you to go thru THAT. For Releasable installations without the Permanent Bond: Our new US2004R Releasable Adhesive. makes replacement or removal of the tiles a snap. This adhesive maintains permanent tack, is conductive, water based, low voc and works GREAT for raised panel access! THE VPI DIFFERENCE!
ELECTRICAL SPECIFICATIONS
Electrical Resistance to Ground: Per EOS/ESD S7.1
Static Decay: Federal Test Method 101C, method 4046TW101B at 15% relative humidity:
Static Propensity: AATCC-134,Conditions: 68 deg, RH @ 40%, Underlayment, earth grounded metal plate, Soles Neolite XS 664 with static dissipative polyurethane heel grounders:
Composition: Pure solid vinyl, devoid of the usual fillers that make standard esd tile break and crack! ASTM F 1700, Passes Underwriters Laboratories: Meets UL Standards NFPA Life Safety Coded 101, Class 1 Int. Floor Critical Radiant Flux (ASTM E 648) .1.08 W / cm2 Smoke Density: (ASTM E 662) <450 Flame Spread (ASTM E 48) ,75 Slip Resistance: Meets or exceeds Federal standards and ADA recommendations of .6 for flat surfaces. Dimensional Stability: Exceeds Federal Specification SS-T-312B, Type III, Vinyl Tile. Flexibility: Exceeds Federal Specification SS-T-312B, Type III, Vinyl Tile Standard Availability, 3.0 mm all sizes and colors): 12" x 12", 24" x 24", 36" x 36" Static Load Limit > 2,500 PSI
Note for fast track construction: New slabs cure very slowly and will generally require a minimum of at least 90 days (4" slab over vapor barrier). Many slabs (depending on environmental conditions and water of convenience used in mixture) will take MUCH longer to cure to the recommended < 5 lbs moisture emission level required prior to installation of your new ESD flooring. The curing times of the slab can be greatly hastened via the addition of the new "super plasticizers to concrete mixture. These plasticizers don't change slump etc yet typically provide a 50% increase in curing time allowing installation or your ESD flooring in as little as 45 days.
For the latest recommendations on grounding esd flooring for static control please visit our NEW page located at: New grounding recommendations for esd flooring
