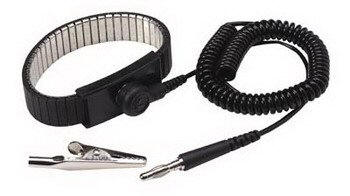

Metal Band ESD Wrist Strap and Ground cable Assembly

Professional Grade, Outstanding Longevity and Reliability

These Industrial strength metal band esd wrist strap and cord assemblies provide comfort AND long term performance. The outside of each stainless steel link is provided with an insulative scratch resistant cap or film for added safety and resistance to non controlled discharge.



Each ground cords contain a built in 1 meg ohm safety resistor. These straps are fully compliant to the latest standards including ANSI/ESD S20.20-2021. They interface flawlessly with (or without) our constant monitors and provide a dependable discharge of static electricity for even the most demanding of mission critical applications. Compare to the metal band straps offered by the high overhead big boys at $24.00 each!

• Ultimate comfort and longevity

• Self adjusting for comfortable yet secure fit

• Inner links static conductive

• Outer links are insulative

• Durable heavy duty polyurethane coated cord.

• Standard Banana jack AND alligator clip termination.

• 1 meg resistor for added safety.

• Individually packaged for secure deployment

• Generous 6' coil cord (fully extended)

• Heavy Duty 3/8 (10 mm) snap and cord

• NEW same strap with 12' ground cord (fully extended) now only $7.95 each, click here to buy online!

Available in the following sizes
Large: 18.5 cm (7.28")
Medium:16.5 cm (6.50")
Small 13.34 cm (5.25").
Metal band ESD Wrist Straps, PN SI 109
NOW only $5.38 and NO Minimums with on line purchase!
Click Here to Buy Online



---



Associated Products

ESD Hand Lotion: Environmental conditions reduce the static conductivity of your skin. Insure successful hand to heel strap or wrist strap electrical continuity. Wrist straps pass with ease, heel straps no longer fail! Keep those hands baby soft and baby conductive (note: no babies were harmed in our testing)! RoHS and clean room compliant. Paraben free, no colorants nor perfumes.





ESD Constant Monitors: Test your wrist strap every second of the working day. Alarms if strap or contact with the user becomes compromised. Eliminates testing manually and entering results in a log.



Common Point ESD Mat Ground Cords: Ground your wrist strap and ESD matting to a common point ground for compliance to ANSI ESD S20.20-2014. We provide the reliable common point ground at the best price in the Nation $5.25 ea.



Static Solutions CT-87XX Series ESD Wrist Strap / Heel Strap Tester: ESD Wrist and Heel Straps are often the first line of defense in controlling ESD. Most programs require frequent testing of these items. The CT-87XX Series tester provides fast complete results with one press of the button. Pass / Fail results are easy to comprehend and impossible to miss. These units are NIST certified and in full conformance with US 2020, European EN as well as DIN standards and specifications.
