esd floor testing / ESD test equipment


Tame the Static Beast



SCRT 2008: Professional S20.20-2007 ESD Audit Kit

Perfect for testing to the latest standards!

ESD electrical resistivity tester, specialty electrodes, electrostatic field meter and accessories.



Perfect for testing electrical resistivity and electrostatic field voltage output per the new ANSI ESD S20.20-2007 AND TR53 Standards! Test esd flooring, esd floor finish, esd chairs, carts, trolleys, esd smocks, ionizers, work surfaces, wrist straps, the resistance between technicians / heel straps / esd flooring (97.1) and MORE!



Electrical Resistance and electrostatic field voltage testing is imperative for compliance to the stringent new standards of ANSI ESD S 20.20-2007ESD and TR53 (as well as Taming those nasty ISO gremlins :)  The RT 2008 professional audit kits includes many standard accessories (with available optional accessories this meter can grow as the Industry standards change) as well as the FM 1125 electrostatic field meter.  Both units are designed to last a lifetime are NIST certified, lightweight, versatile, and robust.

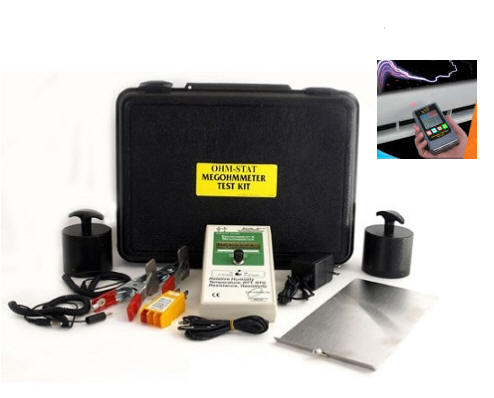

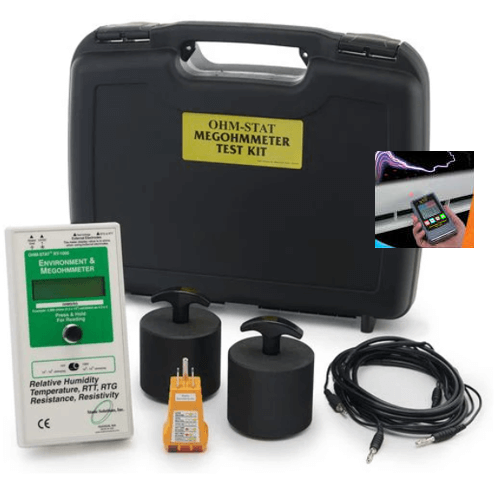

SCRT 2008: Professional 2020-2007 ESD Audit Kit

Includes the SCRT 1000, Accessories, Standard Electrodes,

the FM 1125 AND the TR53/97.1 Specialty hand held electrode!



ESD Material Resistance, Specialty Electrodes AND Field Charging Test Kit

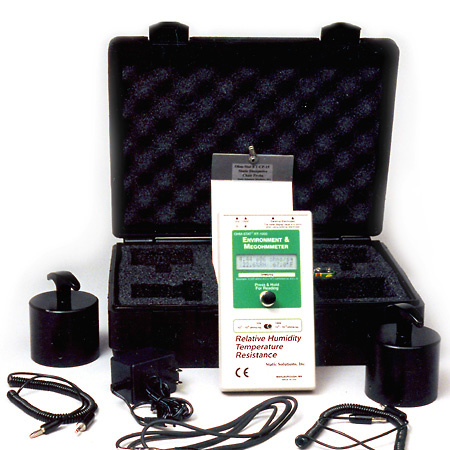

SC RT-1000 with standard electrodes and accessory package

NEW: Technician hand electrode! Perfect for testing wrist straps AND Technician / Heel Strap / ESD Flooring resistance per TR-53 and 97.1! An $89.00 value, NO CHARGE with your order

FM-1125 Electrostatic Field meter

(fits nicely in custom case for with RT 1000)

                     Economy, Durability AND Exceptionally accurate!



The SCRT 1000 resistivity megger is fully portable and measures resistivity AND temperature / humidity (a prerequisite for reporting and saving the cost of purchasing an independent humidity / temp meter).  Fully Ranging (from < 1.0E03 to 1.0E13) and 10 Volt OR 100 V output capabilities. The SC RT-1000 accepts a multitude of external test electrodes for accuracy and parallel internal bar electrodes for spot checking. Perfect for measuring ESD flooring to the latest standards of EOS ESD S7.1 and 97.1 as well as measuring resistance ranges of ESD matting and other mission critical ESD materials including chairs and esd smocks to the new TR 53 methods.



The SC RT-1000 Features:

  • Easy to read digital display

  • Measures resistivity/resistance from <1.0E03 to >1.0E12 ohms
  • Measures relative humidity-10% to 90% RH
  • Measures temperature: 32°F to 100°F (0°C to 37°C)
  • 10v / 100v dual test voltage ranges
  • Automatic zeroing and power off
  • Power options:120 VAC, 9 VDC (alkaline or ni-cad) power adapters included
  • Meets ANSI/EOS/ESD Standard 11.11
  • CE Approved,  NIST Traceable with Certificate included
  • Options to EXPAND capabilities to garment, wrist straps, heel straps etc etc

The SC RT-1000 Includes:

  • Two 5lb. 2.5" probes with handles
  • Two 3" parallel surface resistivity probes
  • Dissipative chair test probe (meets ANSI/EOS/ ESD Standard 12.1)
  • Garment clamps (conforms to EOS/ESD 2.1 standard)
  • Earth ground probe
  • Concentric ring probe available
  • Foam lined carrying case
Optional and Replacement Accessories for RT 1000:

MP-6533  Personal Wrist Strap Tester, $89.00
FP-1745  Personal Footwear Tester, $89.00
MP-1234  Miniature Probes, $250.00
RP-4323  extra 2 - 5lb Resistance Probes, $131.00
GT-4872  Ground Circuit Tester, $25.00
GC-5621  Garment Clips, $65.00

RT-1000 Tester Data Sheet

RT-1000 Accessories Data Sheet

RT-1000 owners Manual and Operation Guide

RT-1000 Calibration Instructions

PN: SC RT-2000

MSRP Price ea.

$1,664.00

Weight with 2 ea 5 lb probes: 15 lbs
Note: For International orders please specify 110 volt or 220 volt and if you wish your unit to read in Centigrade or Fahrenheit.
