ElectraSeal^® ESD Concrete Sealer: High-Performance Static Control

A proven realistic-cost solution for controlling electrostatic discharge (ESD) across advanced technical facilities.

Universal Static Protection: Reduces static generation even with standard footwear, regular office chairs, and rolling carts.
Industry-Optimized: The perfect solution for AI server farms, data centers, robotics facilities, and plastics manufacturing.
Free Hardware Included: Every order comes with free grounding hardware to simplify your setup.
Exclusive, Patented Tech: Features a unique hygroscopic, patented formulation manufactured exclusively by United SCP.

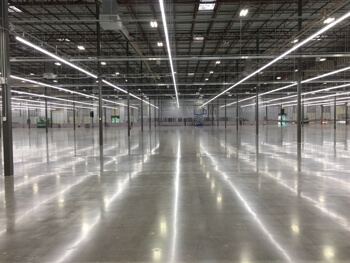

ElectraSeal ESD Concrete Sealer Over Ground and Polished Concrete. (larger photo)

ElectraSeal is Made in America EXCLUSIVE FORMULATION: Standard concrete sealers aren't hygroscopic. They are designed to repel the ambient environmental humidity that gives ElectraSeal its unique static dissipative electrical conductance. And, ElectraSeal isn't a static control floor finish or wax that will flake, powder and quickly degrade.

ElectraSeal is Different!

ElectraSeal's one of a kind metal free polymer chain is specifically designed for long term mechanical performance and lasting ESD control properties. Unlike standard concrete sealers, ElectraSeal provides anti static properties when applied to ANY hard surface flooring or material but works BEST when applied over concrete.

ElectraSeal is economical, long life, easy to maintain and has an extremely low VOC content making it an attractive option for Architects and End Users looking to achieve stringent "Clean and Green Building Standards."

ElectraSeal is perfect for use on concrete filled raised access panels, cast-in-place (slab on grade) and slab on deck concrete. ElectraSeal may be used over a multitude of concrete finishes including broom finished, hard trowel and diamond ground and polished concrete. ElectraSeal contains ZERO metallic or carbon particulates (RoHS Compliant) and is a preferred choice for a multitude of static control environments such as data centers and robotics.

Static Electricity is NOT Your Friend!

Static electricity is normally created by contact and separation. Whether it is from a person's clothing rubbing against their skin, rolling on the floor with casters or even just walking on the floor, static is EASY to generate. In most cases a person won't be able to even feel this static (the voltage is too low) but it is ongoing, relentless and powerful. It can devastate sensitive microelectronics and in some cases cause fine powder to ignite.

The electrical conductivity of a floor is what takes this static charge to ground. Yet concrete's electrical conductivity varies dramatically. At times it is very conductive (not safe around energized equipment) or totally insulative (thus not allowing a static charge to dissipate to ground). ElectraSeal smoothes out these fluctuations and provides reliable, safe electrical conductivity across the entire floor. Note: Always pretest conductivity when used for electronic manufacturing.

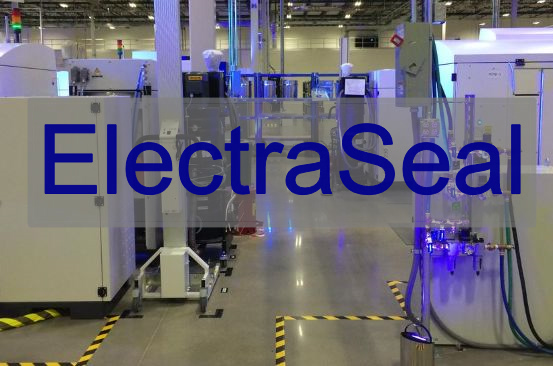

ElectraSeal at GE Additive Manufacturing in PA

From sophisticated manufacturing to IDF rooms

ElectraSeal Tames the Static Beast Before it Takes another Byte^®

Conductivity that is SAFE for use around energized equipment

Economical at a cost of less than $0.50 cents per square foot

Easily handles THE heaviest of loads

Excellent slip resistance - even when wet!

Reduces static discharges without heel straps

Easy to maintain and eliminates concrete dusting

Low to NO odor application

Perfect for fast track construction

Microporous - Allows for use over high vapor emission concrete

Made in the U.S.A.

Trusted by Fortune 500 Companies Worldwide

ANSWERS TO THE MOST COMMON QUESTIONS:

What is the typical coverage of the material? 1,500 square feet per gallon per coat
How many coats are recommended? 3

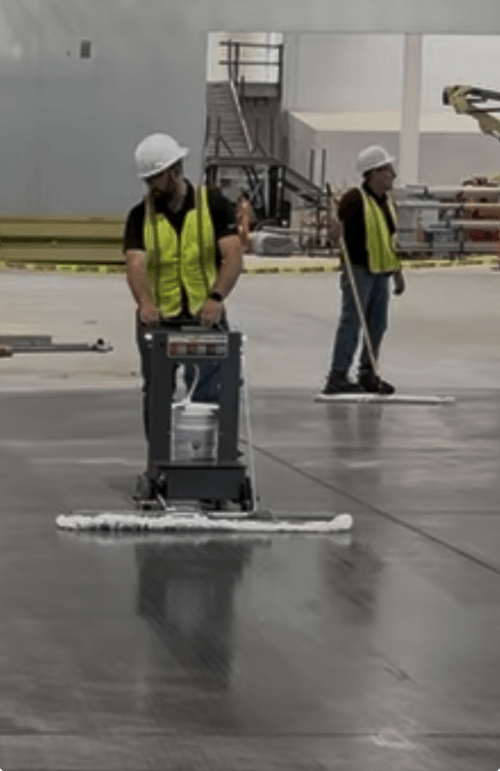

How is it applied? With a microfiber mop, United High Speed Applicator or a battery powered pavement sealer spray cart.
Can it be applied around existing equipment? Yes, easily
Do we need to bridge each saw cut and expansion joint with ground foil? No
Can it only be used over slab on grade concrete? No. ElectraSeal may be used over slab on deck concrete and even on cinder block walls.
How do I ground it? Use the free aluminum foil ground straps that are included with each order OR place a grounded steel structure (such as a file server rack or transformer etc.) on top of the coating.
Does the concrete need profiled? No, it may be applied over all types of concrete finishes.
Can it be used over densified or sealed concrete? ElectraSeal provides OPTIMUM static conductivity when used over unsealed concrete but SEEMS to bond to a variety of sealed, densified or diamond ground and polished concrete (ALWAYS pretest per application instructions).
Is it only for use over concrete? ElectraSeal works best over concrete but many clients use the system (E-Seal and ground foil) over standard hard surface flooring with satisfactory results (pre testing is recommended).
Is it easy to maintain? Yes! Dust mop daily to remove abrasives. Damp mop or auto scrub as needed using ElectraClean and water. Remove scuff marks as needed by burnishing with ElectraShine.
What environments should it not be used in? Artificially maintained constant low humidity environments of less than 30% relative humidity.
Note: Due to the various levels of static control required for electronic manufacturing always pretest conductivity to insure it is a good fit for your ESD program.
NEW: Grounded metal server racks (or other similar items) placed on top of the coating have now been approved as an alternate for the ground straps.
